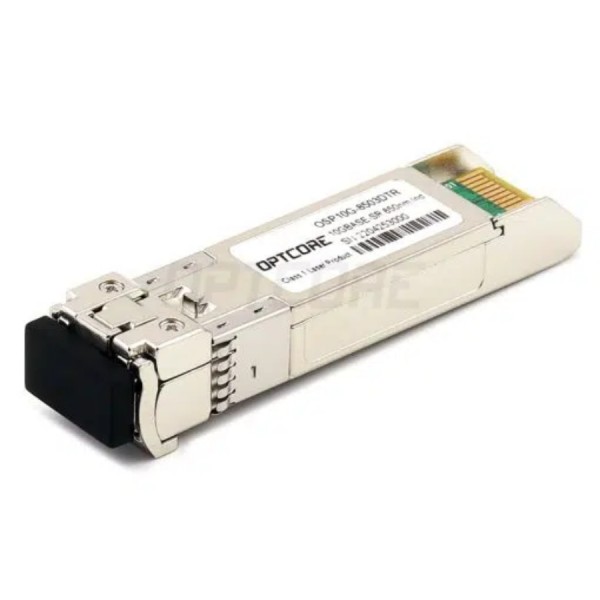

Optcore 10GBASE-SR SFP+ Transceiver Module, Multimode, 850nm, 300m Reach

Optcore’s OSP10G-8503DxR is a high performance and cost-effective 10GBASE-SR SFP+ transceiver module for 10 Gigabit Ethernet links up to 300m over OM3 multimode fiber. The transceiver features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into duplex LC optical connector. It complies with SFP+ MSA specifications (SFF-8431, SFF-8432), 10 Gigabit Ethernet specifications (10GBASE-SR/SW per IEEE 802.3ae ), and  10G Fibre Channel (1200-MX-SN-I). It’s suitable for use in 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. Additionally, the 10GBASE-SR SFP+ transceiver has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All modules are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards. There are three versions of the series 10GBASE-SR SFP+ transceiver for different applications. The Standard grade (0~70ºC) is for commonly commercial application, the Extended grade (-10~85ºC) is for Extended temperature application, and the Industrial grade (-40~85ºC) is made with robust and reliable components to meet the needs of Industrial Ethernet application under harsh environmental conditions.

Features

● Supports up to 10.7Gbps bit rates

● Hot-pluggable SFP+ footprint

● Compliant with SFP+ MSA and SFF-8472

● 850nm VCSEL transmitter, PIN photo-detector

● Distance up to 300m on Multimode OM3 fiber

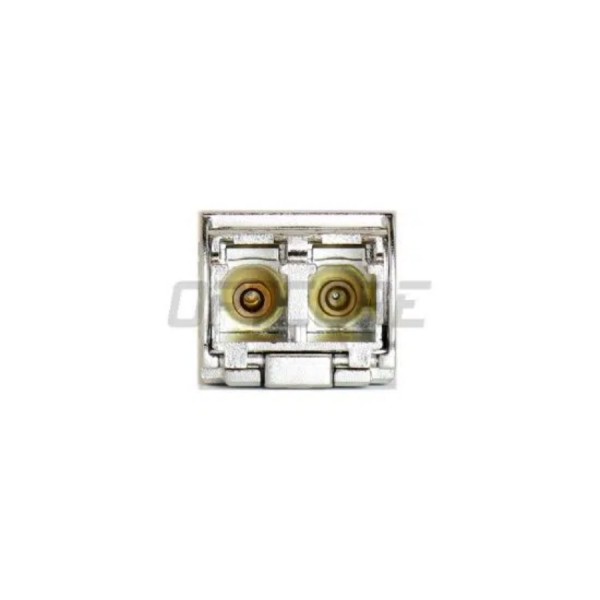

● Duplex LC connector

● Built-in digital diagnostic functions

● Single +3.3V power supply

● Metal enclosure, for lower EMI

● ROHS compliant and lead-free

● Operating Temperature: Standard 0~70ºC, Extended -10~85ºC, Industrial -40~85ºC
