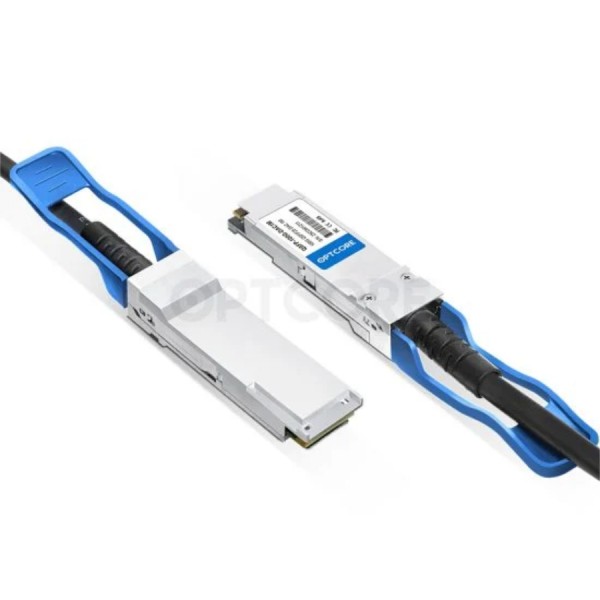

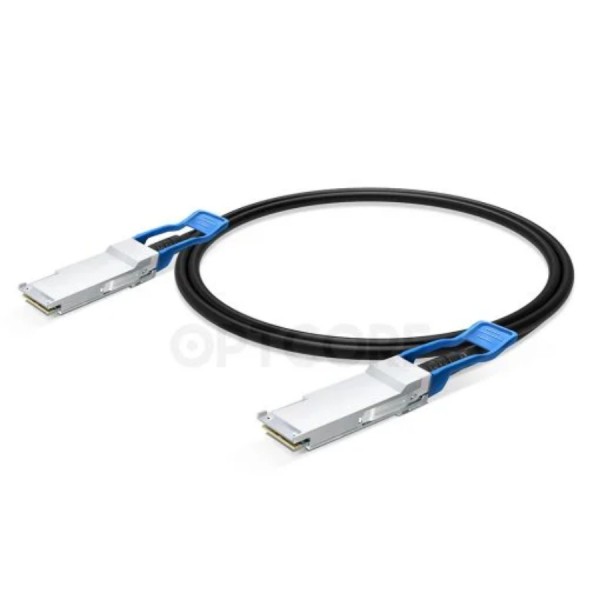

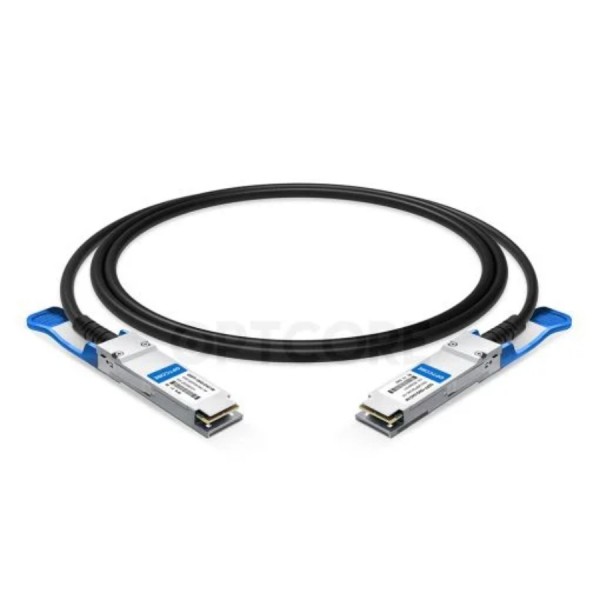

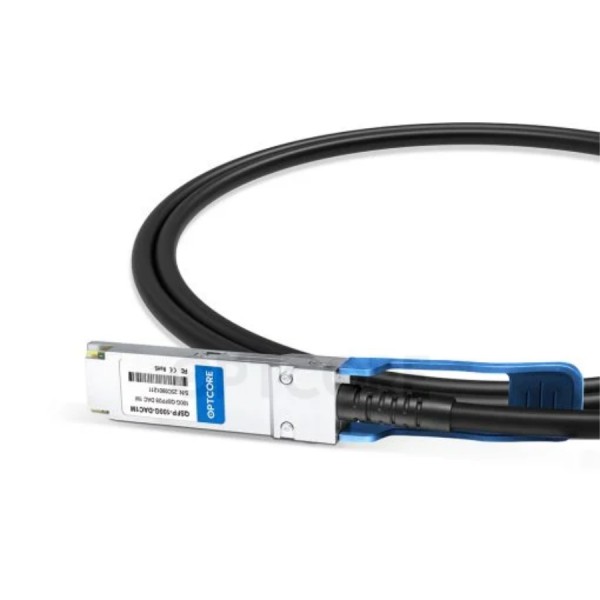

Optcore 100G QSFP28 Passive Direct Attach Copper Cable (PCC) 3M

The Q-100G-DAC-PxM direct attach copper cable assembly (also known as QSFP28 DAC) is suitable for very short distances. It offers a highly cost-effective way to establish a 100 Gigabit link connectivity between devices using QSFP28 ports. The QSFP28 DAC copper cable is designed for 100Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), data center, and network storage markets. The Q-100G-DAC-PxM fully complies with QSFP28 Multi-Source Agreement (MSA) standards SFF-8665, IEEE 802.3bj, and Infiniband EDR. It is developed specifically as a cost-effective and lower-power replacement to 100G QSFP28 optics and QSFP28 active optical fiber (QSFP+ AOC) for short distances.

Features

• QSFP28 conforms to the Small Form Factor SFF8665

• 4-Channel Full-Duplex Passive Copper Cable

• Up to 25.78 Gbps data rate per channel

• Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)

• Compliant with IEEE 802.3bj 100GBASE-CR4

• Single 3.3V power supply

• 24AWG to 30AWG cable available

• Operating temperature range: 0 to 70°C

• RoHS Compliant and Lead-Free
