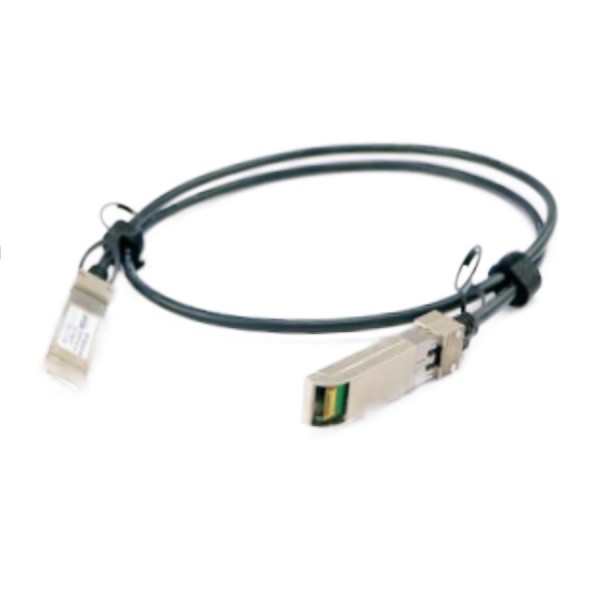

Optcore 10G SFP+ Passive Direct Attach Copper Cable (PCC) 1M

Optcore’s SFP-10G-DAC-PxM is a hot-swappable direct attach copper cable assembly (also known as Twinax Cable or DAC) with SFP+ modules at both ends. It is developed specifically as a cost-effective and lower-power alternative to SFP+ optical modules and Active Optical Cables. SFP-10G-DAC-PxM is a passive DAC cable and there is no signal conditioning circuitry in the SFP+ module. The DAC cable fully complies with SFP+ Multi-Source Agreement (MSA) standards SFF-8431, SFF-8432, and SFF-8472. It is designed for short reach links in 10Gbps high-speed interconnect applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage servers.

Features

● Support for multi-gigabit data rates up to 10.5Gbps

● Support for 1x, 2x, 4x and 8x Fibre Channel data rates

● Compatible to SFP+ MSA SFF-8431

● Hot-pluggable SFP 20PIN footprint

● I/O Connector designed for high speed differential signal applications

● 360 degree cable braid crimp and enhanced EMI skirt

● Low insertion loss and low crosstalk

● Single 3.3V power supply

● Operating temperature range: 0 to 70°C

● RoHS Compliant and Lead-Free
