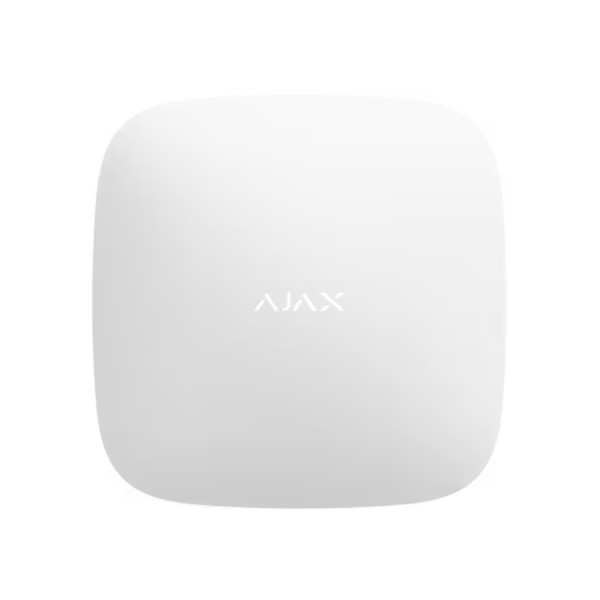

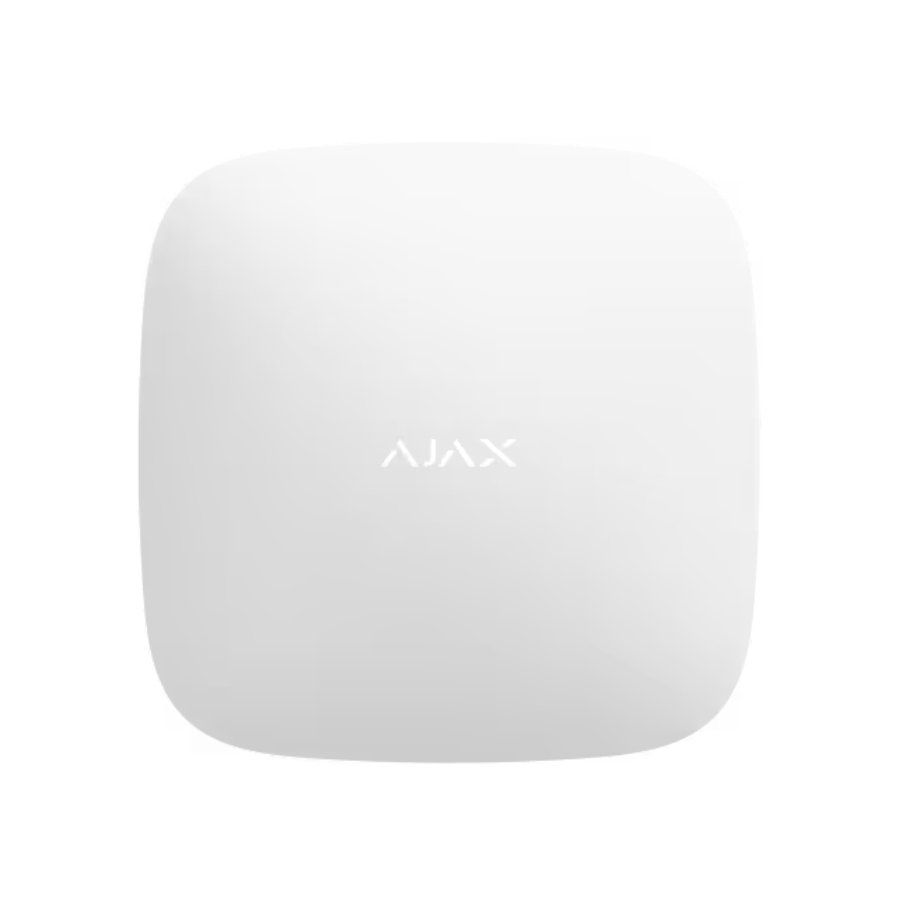

Ajax Hub 2 Jeweller

Ajax Ultra DP: dual-path reliability with ready-to-use presets

Ajax Ultra DP offers a simple way to configure compliant dual-path alarm transmission (DP2, DP3, or DP4). It complements Ajax SIM to deliver reliable and uninterrupted system operation from the very start. All is up and running within minutes thanks to quick and intuitive in-app setup.

More info for PROs

In control of security, not your private life

Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your facility, Hub 2 will notify the monitoring station1 and send photos from the MotionCam detectors. You won’t need to live under the constant supervision of the security cameras to know what’s going on.

Alarm photo verification in 9 seconds

Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies — from false calls of patrols.

1. Motion detected
2. Alarm triggered
3. Evidence captured

Always connected — via cable and cellular networks

Communication with the outside world is critical for the security system control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.

Hub 2 can be simultaneously connected to three Internet service providers — via Ethernet cable and 2G, 3G, and LTE3 cellular networks. The automatic switching between channels takes seconds.

Unique wireless technologies

The Ajax system uses two-way secure radio communication based on Jeweller and Wings proprietary protocols. Radio protocols work in parallel and focus on their own function, guaranteeing instant data and delivery even with communication interruptions and a weak signal.

• Up to 2000 m of radio communication with a hub or range extender
• Encrypted two-way radio communication
• Notifications about jamming and connection loss
• 9 seconds4 to deliver the first photo

Flexibility at the core

The Hub 2 radio network covers several floors and separate buildings — thanks to the communication range of 2,000 meters and the ability to connect five range extenders. To manage access and security zoning of the facility, the hub allows connecting 50 users and creating 9 security groups. Hub 2 is a perfect choice for home and business security.

9
security groups

50
users

100
devices in the system

2000 m
of Radio communication range

Controlled with apps

We refrained from control buttons on the control panel body and archaic interfaces — apps are more convenient and reliable. They connect to a hub via a secure channel through the Ajax Cloud server located in several AWS data centres. Server availability in 2021 was 99.995%.

Apps allow system users with administrator rights to manage the security of the facility, change settings of the hub and the devices connected to it, create scenarios, and monitor events. From a smartphone or a PC. On the site and remotely.

Automates security

Hub 2 allows creating 32 scenarios and minimizing the impact of human factor on security. The hub can arm and disarm a facility or a group by schedule. Instantly activate a smoke machine if someone enters the premises. Blackout the premises and turn on emergency lighting in case of fire. Or shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector alarm.

• Flood prevention system
• Automatic doors and roller shutters
• Alarm-triggered site illumination

Resistant to sabotage

Whatever happens to Hub 2, the security company and the users will be notified. No one can disconnect the hub unnoticed when the facility is disarmed. If an intruder attempts to dismount the device, this will trigger the tamper immediately. The Ajax Cloud server can notify about the loss of connection with the hub in 60 seconds due to frequent polling. Even if the building is de-energized, the hub will protect the object for up to 16 hours with a built-in backup battery2.

Devices polling from
12 s

Detection of hub connection loss in
60 s

16 hours
of backup battery life

OS Malevich

Future-proof

Hub 2 runs OS Malevich — a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich.

Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and remain relevant for years to come.

Easy security system upgrade

To simplify updating hubs at the facilities, we have provided the ability to transfer data between them automatically. The import feature allows you to transfer settings, connected devices, groups, scenarios, and users from the old hub to Hub 2. In less than 15 minutes.

Hassle-free installation

Hub 2 is ready to operate out of the box. All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power supply and the Internet, insert the SIM cards, and scan the QR code through the app. With the SmartBracket mounting panel, there is no need to disassemble the device body during installation.

Connecting security devices, video cameras, users, testing the radio signal, creating groups and scenarios, even sending a request for connection to the CMS — all system settings are always available in the Ajax apps. Whether you are at the site or not.
