In Stock
  • Product Code: UB-WAVE-PRO
  • Brand: Ubiquiti
Retail incl VAT : R15,999.00
-
+

Please log in for dealer pricing

Description

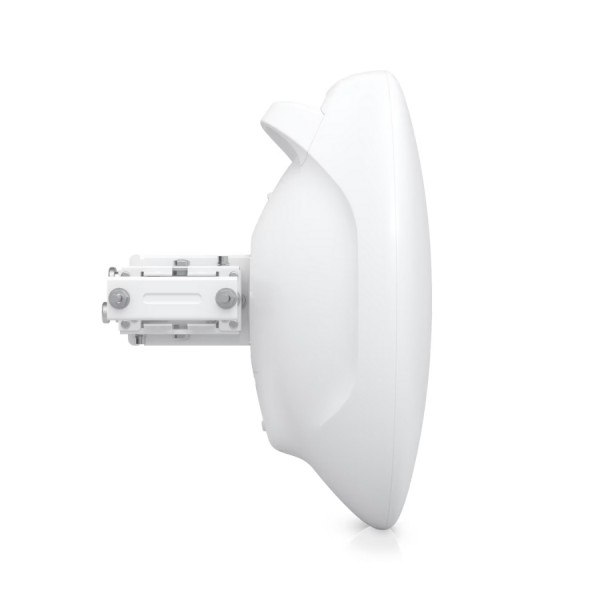

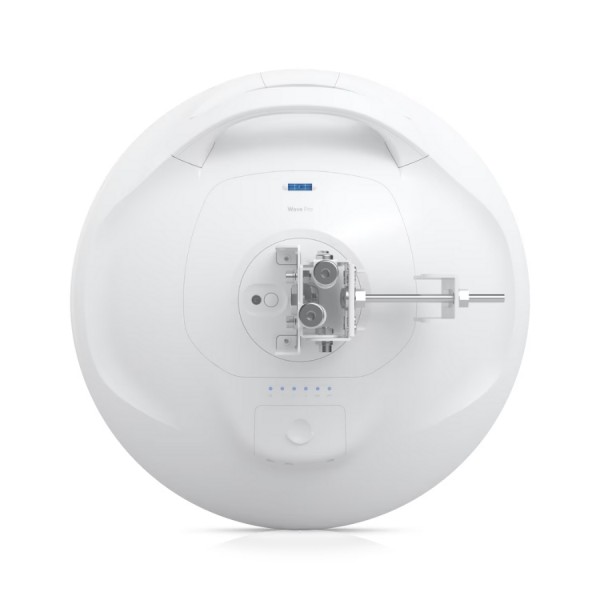

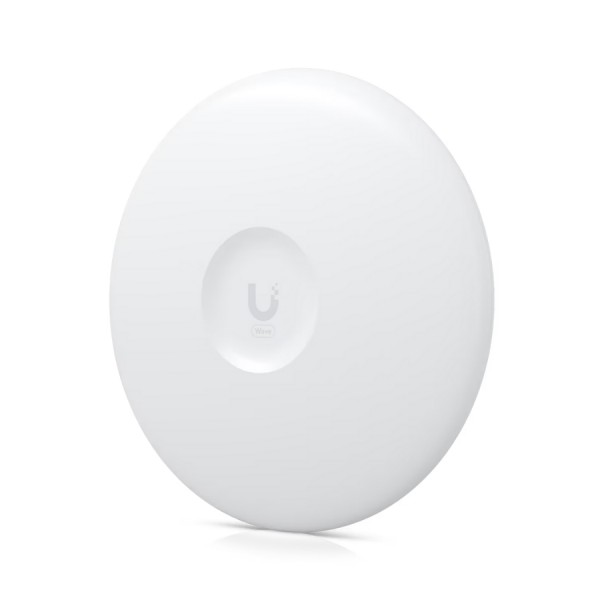

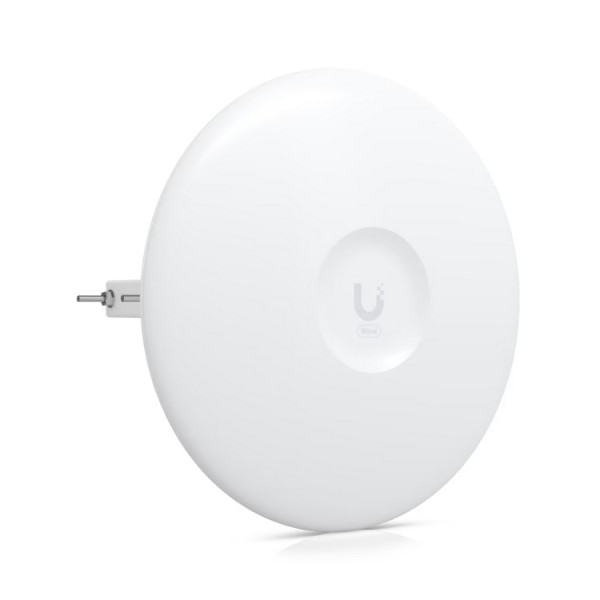

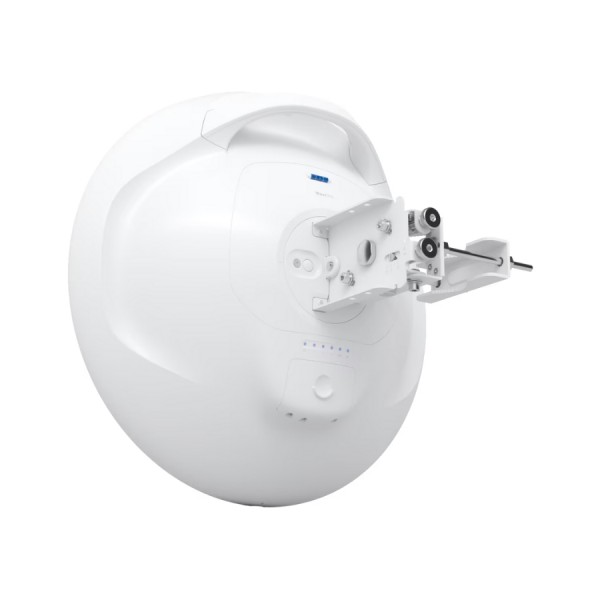

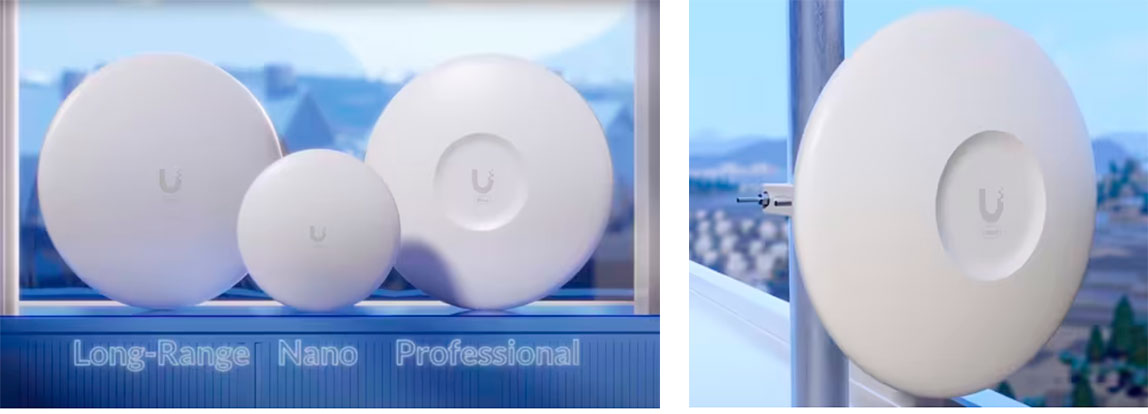

Ubiquiti Wave Pro

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

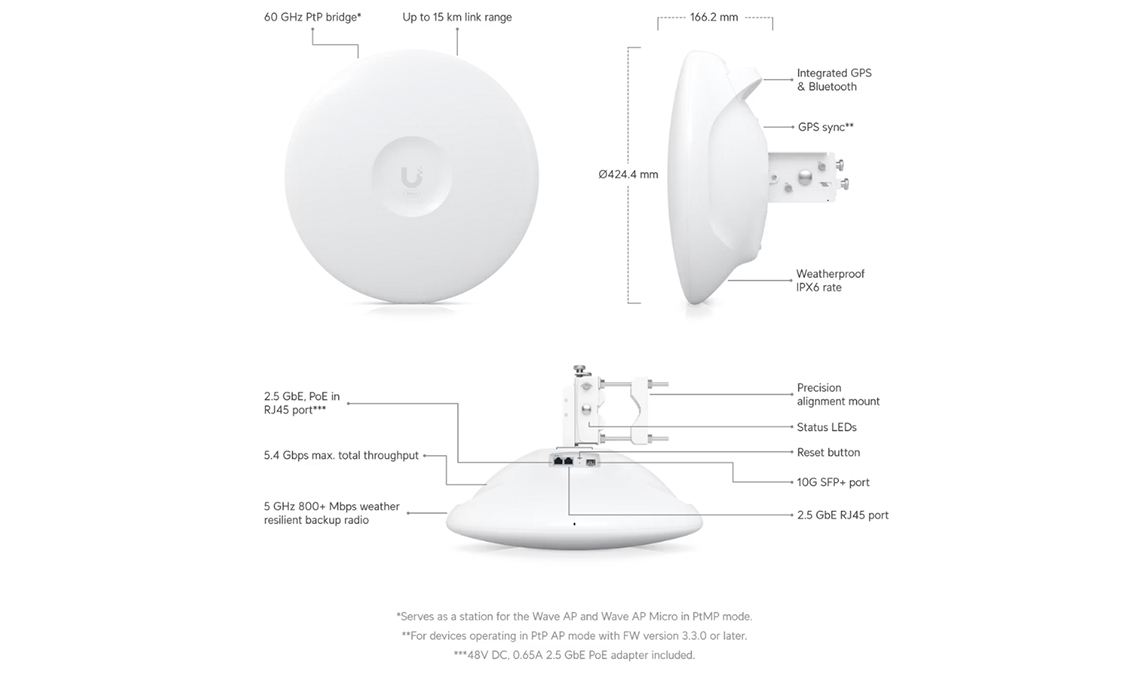

Experience ultra-fast, long-range wireless connectivity with the UISP Wave Pro, a high-capacity 60 GHz radio designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) links. With 5.4 Gbps total throughput, integrated GPS, and precision alignment, this device ensures seamless, high-speed data transmission over distances of up to 15 km (PtP) and 8 km (PtMP).

Key Features:

✅ High-Speed Wireless Fiber – 60 GHz radio with 5.4 Gbps throughput for ultra-fast data transfer.

✅ Long-Range Connectivity – Supports PtP links up to 15 km and PtMP links up to 8 km.

✅ Backup 5 GHz Radio – Ensures connection reliability in challenging conditions.

✅ Advanced Networking Interfaces – (2) 2.5 GbE RJ45 ports and (1) 10G SFP+ port for flexible connectivity.

✅ Integrated GPS & Bluetooth – Enables precise alignment and easy setup via the UISP® Mobile app.

✅ Weatherproof & Durable – IPX6-rated enclosure for outdoor deployment in harsh environments.

Perfect for ISPs, enterprise networks, and high-performance wireless applications, the UISP Wave Pro delivers unmatched speed, reliability, and efficiency.

Specification

Antenna Specs
Diameter Ø16.7 x 6.5" 25 to 76.2 mm (1 to 3") on pipe outer diameter
HDMI Specifications
Power consumption (Max) 26W
NVR Specs
Network Interfaces (2) 2.5 GbE RJ45 ports (1) 10G SFP+ port
Reyee CAP
Certifications FCC, IC, CE
UPS Specs
Ambient Operation -40 to 60° C (-40 to 140° F) 5 to 95% noncondensing
AirFiber
Weatherproofing IPX6
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L 512 MB
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) Supported voltage range - 44–54V DC, 22–27V DC
GPS Yes
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
