Ubiquiti UB-WAVE-PICO
- Product Code: UB-WAVE-PICO
- Brand: Ubiquiti
Description
Ubiquiti UB-WAVE-PICO

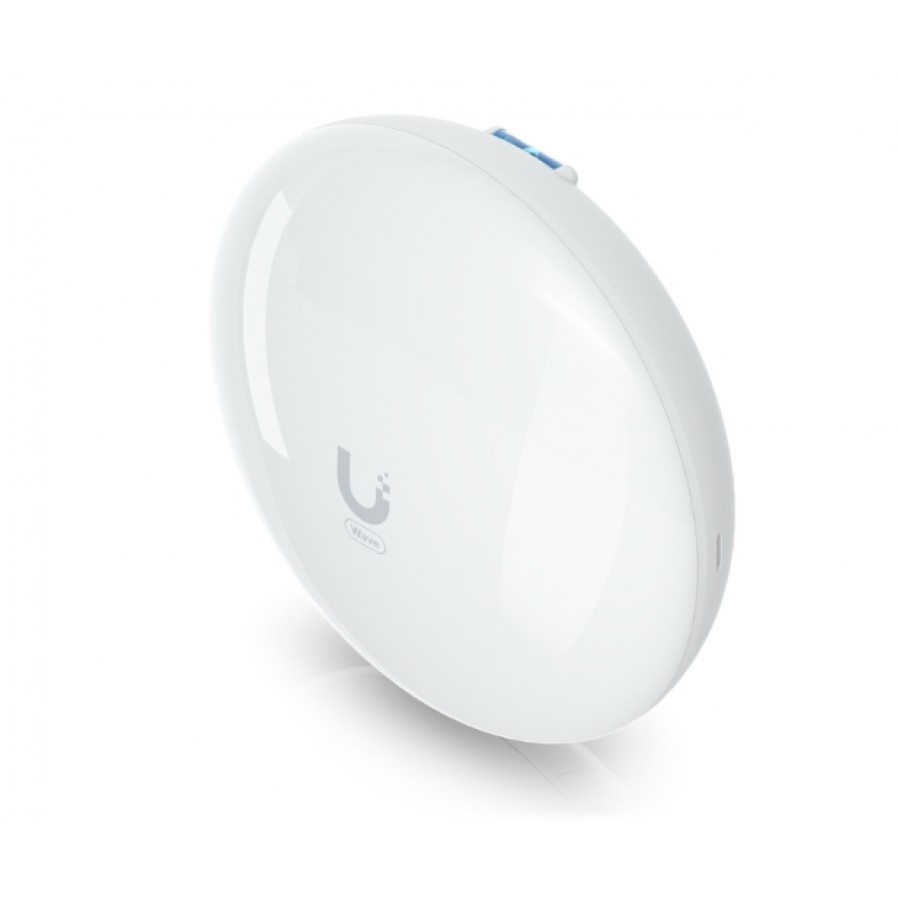

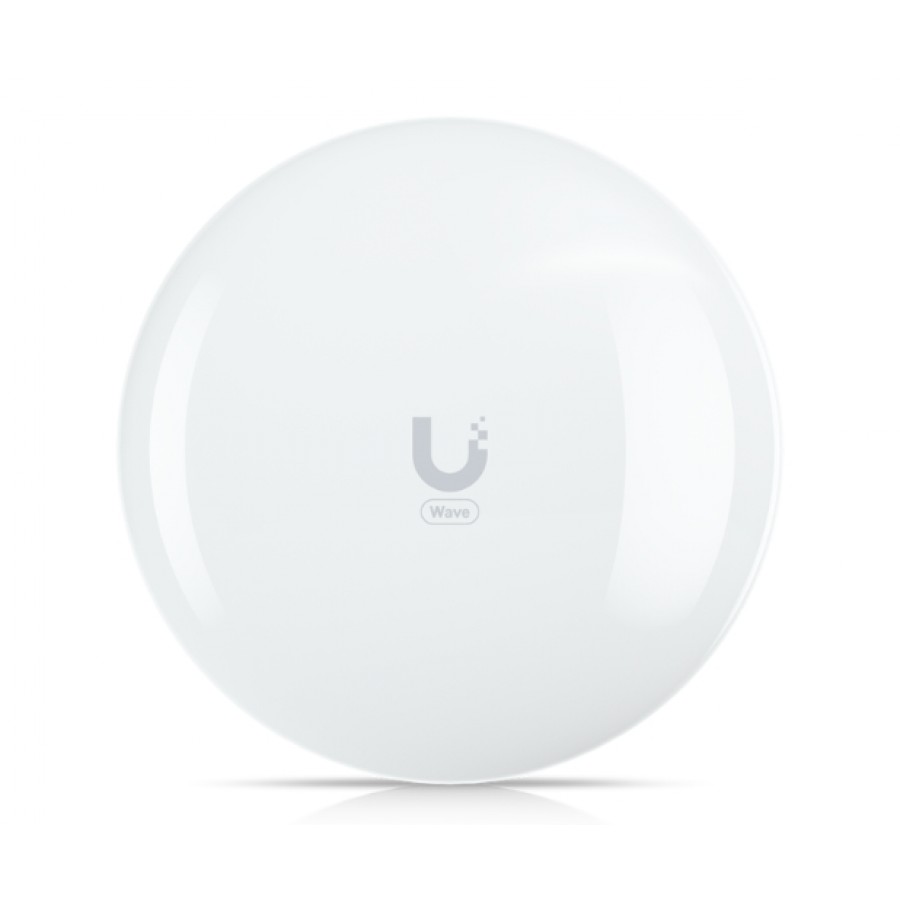

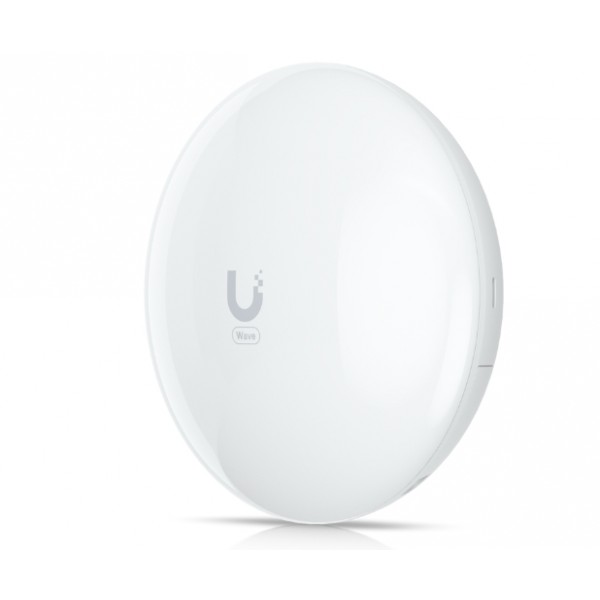

The Ubiquiti UISP Wave‑Pico is a sleek, lightweight (≈410 g with mount) outdoor wireless station designed for point-to-multipoint (PtMP) links. Leveraging ultra‑high-frequency 60 GHz Wave technology, it delivers up to 2 Gbps (1 Gbps duplex)—perfect for high-bandwidth needs like backhaul, remote premises, or multi-AP deployments. If local 60 GHz connectivity fails (e.g., due to rain fade), the integrated 5 GHz Wi‑Fi 6 backup radio maintains connectivity at up to 800 Mbps.

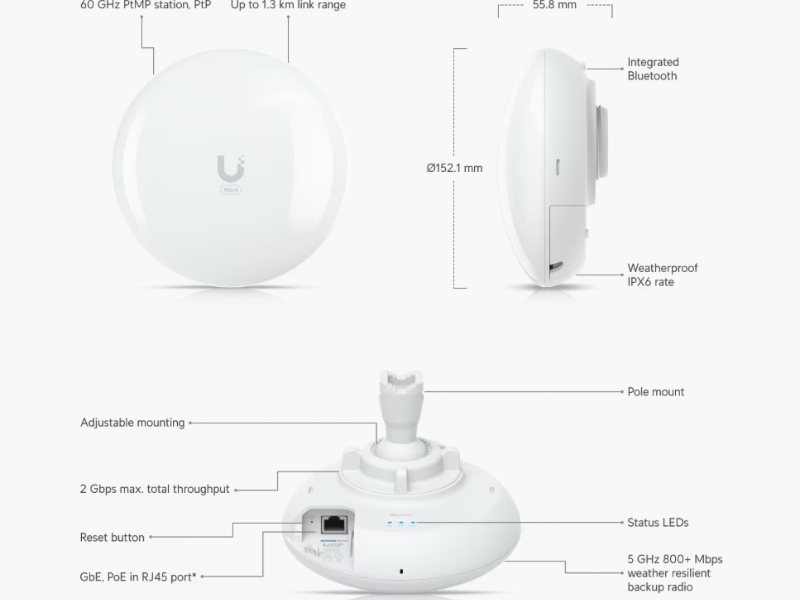

Key Features
- Built-in Bluetooth for fast setup via the UISP app
- Single 1 GbE RJ45 PoE port (48 V DC, 0.5 A)—powers the unit via PoE injector, switch, or router

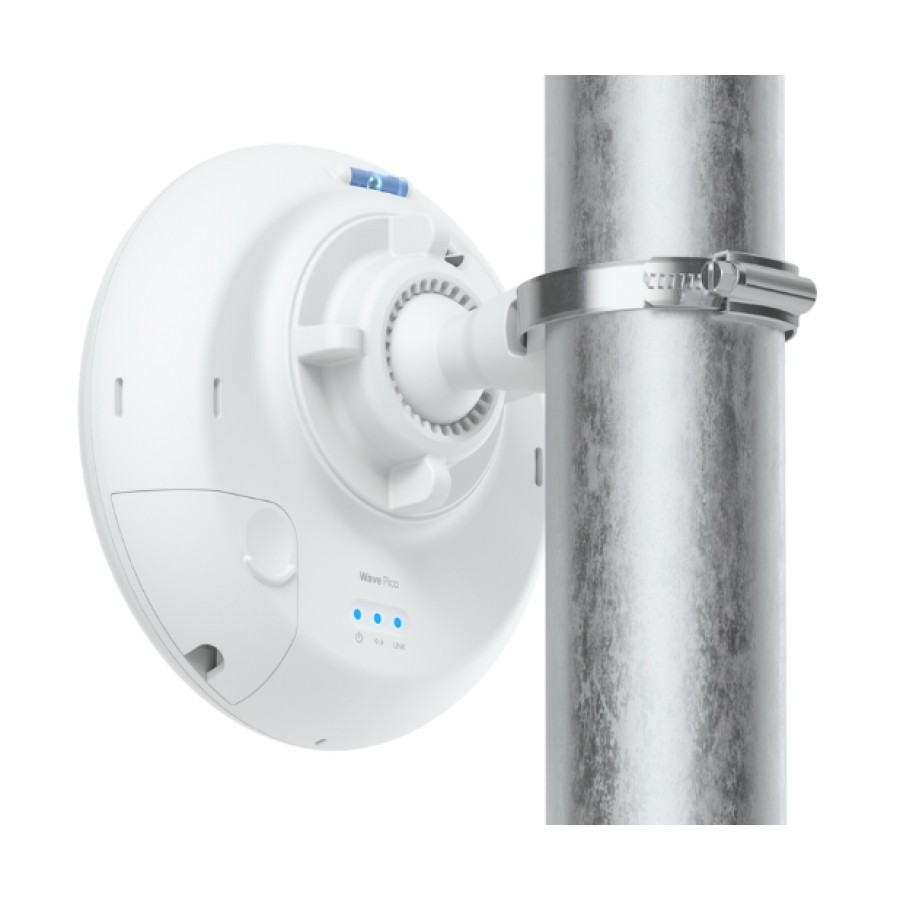

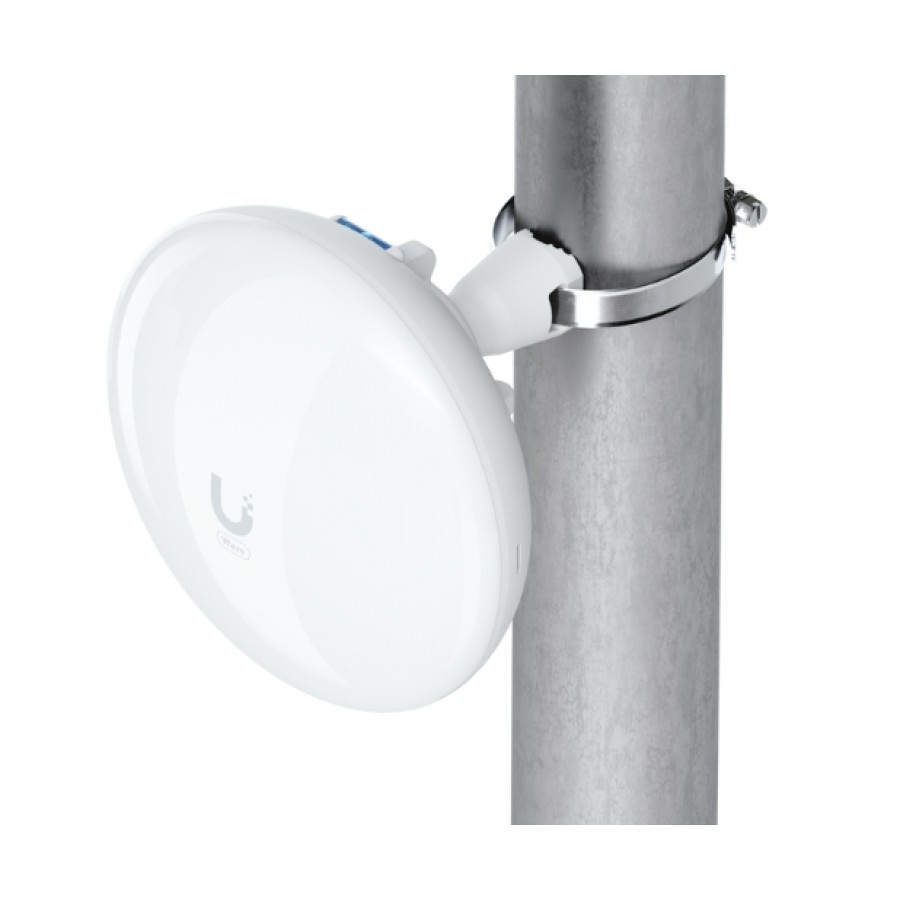

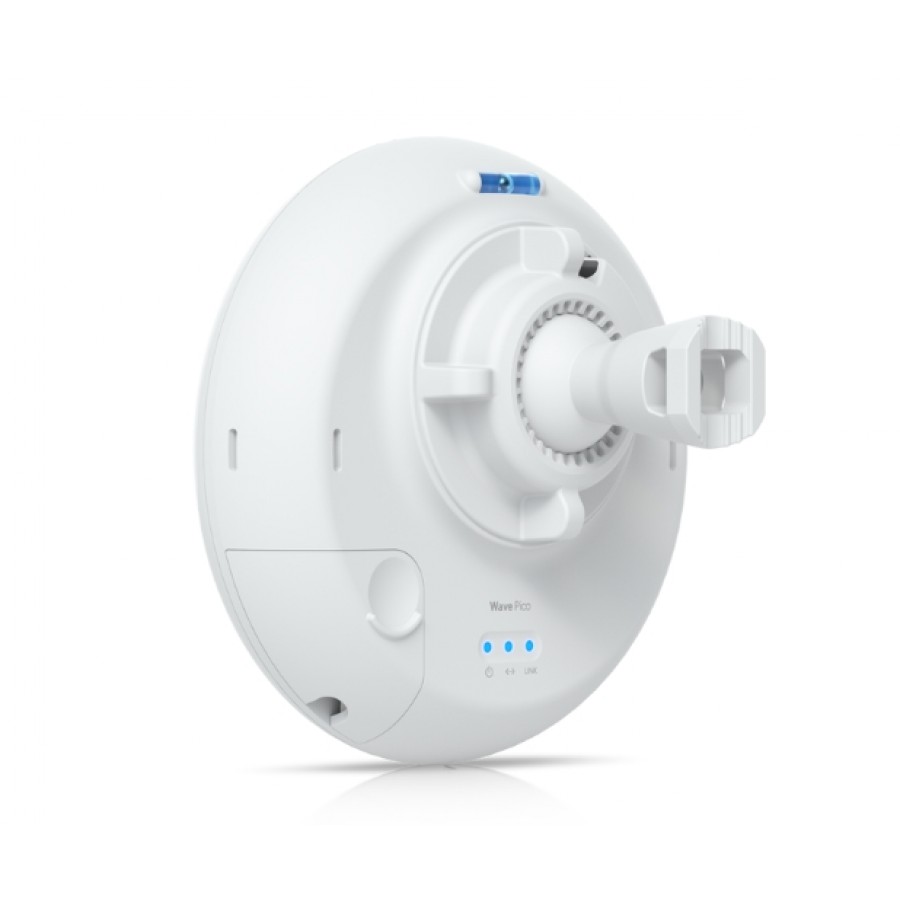

- Durable IPX6 polycarbonate housing, pole mount (Ø20–53 mm), rated for winds up to 200 km/h
- Ideal for wireless bridges, small cell backhaul, or campus edge uplinks
Specification
| HDMI Specifications | |
| Power consumption (Max) | 10W |
|---|---|
| Interfaces & Connectivity | |
| GPS | No |
| AirFiber | |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only |
| Power supply | 48V DC, 0.5A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch |
| Specifications | |
| Enclosure materials | UV stabilized polycarbonate |
| Memory | DDR3L 512 MB |
| Networking & Ethernet | |
| Network Interfaces | 1 x GbE RJ45 port |
