UltraLAN OTDR with VFL, OPM & Cable Tester (FIB-T-OTDR1315)
- Product Code: FIB-T-OTDR1315
- Download Datasheet:
- Brand: UltraLAN
Description
UltraLAN OTDR with VFL, OPM & Cable Tester

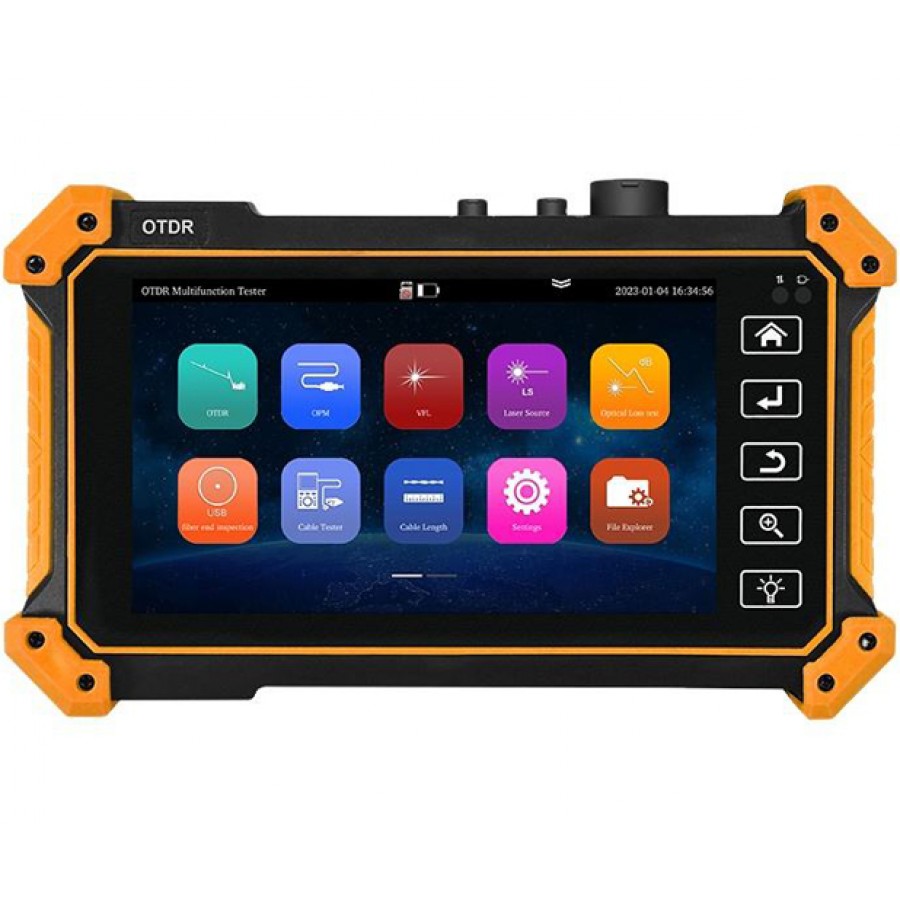

The UltraLAN FIB-T-OTDR1315 is a professional-grade, multifunctional OTDR (Optical Time Domain Reflectometer) tester designed for fiber network construction, diagnostics, and maintenance. Combining the capabilities of multiple tools into a compact 5.5-inch touchscreen unit, it streamlines fiber testing with high precision, user-friendly controls, and intelligent analysis.
With support for testing up to 100km, wavelengths of 1310/1550nm, and dynamic ranges of 26/24dB, the FIB-T-OTDR1315 delivers accurate insight into fiber link performance. Its core functions include OTDR testing, visual fault locating (VFL), optical power meter (OPM), loss testing, stable laser source output, RJ45 TDR testing, UTP cable diagnostics, and fiber end inspection.
Product Highlights:
- 5.5" OLED touchscreen with 1280×720 resolution
- OTDR support for 1310/1550/ with up to 100km range
- Dual dynamic range (26/24dB) for high-accuracy fiber diagnostics
- Stable laser source with CW/270/330/1000/2000Hz modes
- Loss test, VFL, optical power meter, cable tracer, and RJ45 TDR included
- 4000mAh rechargeable battery, USB/SD card data export, and PDF/Excel report generation
Key Features:
- High-Precision OTDR with auto and expert modes for fault location, attenuation analysis, and event mapping
- Dual Wavelength Support: Optional 1310/1550nm testing for both short and long-range applications

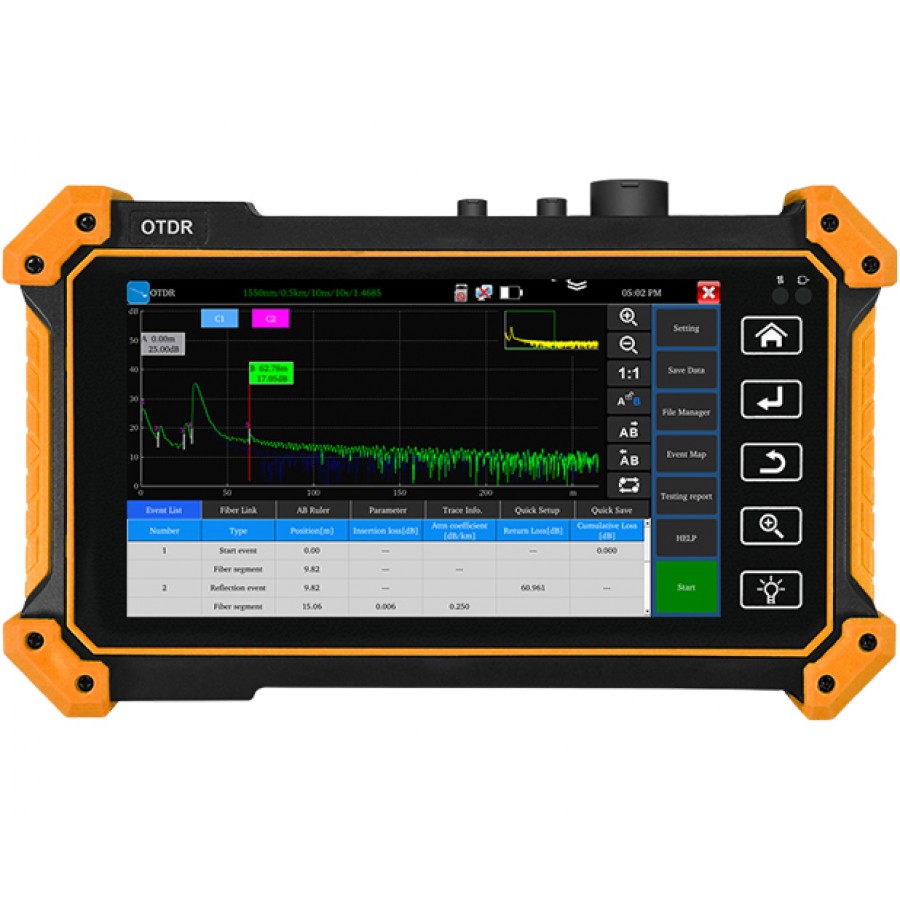

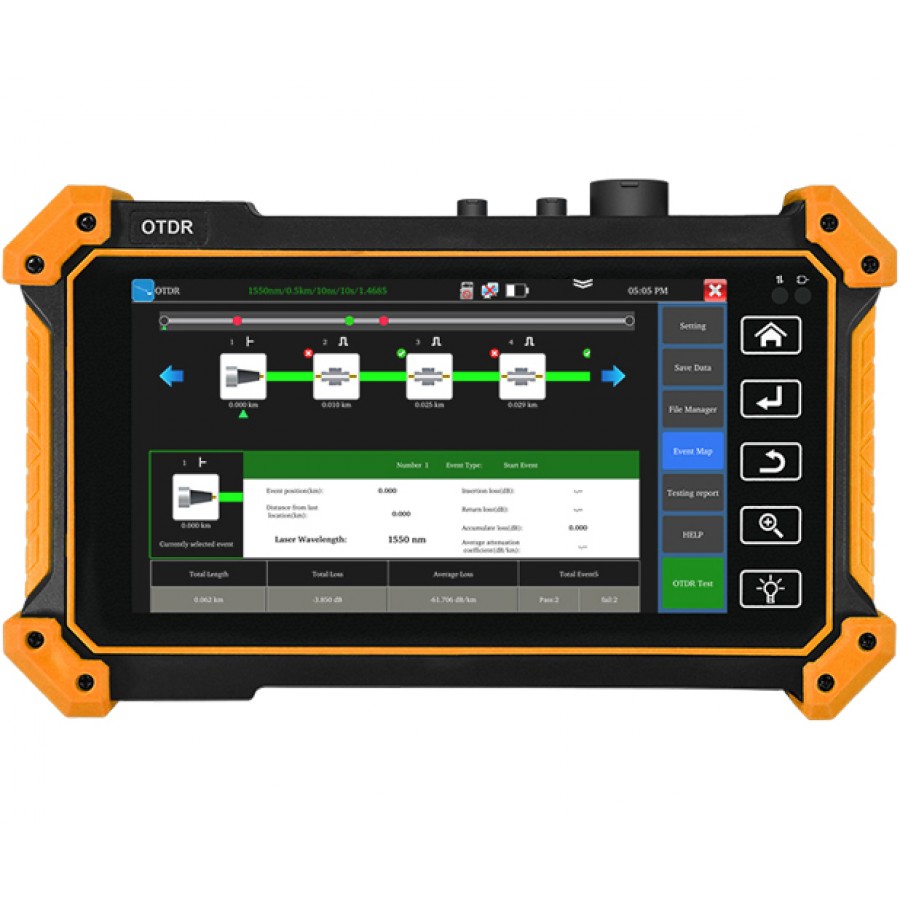

- Event Map & Trace Graph: Automatically detect and analyze reflection and non-reflection events such as splices, bends, and breaks
- VIsual Fault Locator (VFL): 10mW red laser source tests for visible fiber breaks up to 8km
- Loss Test Mode: Calibrate and evaluate insertion loss of optical passive devices with real-time power readings
- Optical Power Meter: Multi-wavelength support (850 to 1625nm) for both linear and non-linear power display
- Cable Tester: RJ45 wiremap and TDR mode to detect pin faults, breaks, and measure cable length (up to 600m)
- Data Export: Save reports in .SOR, PDF, or Excel formats via USB or SD card
- Rugged Interface: SC-PC port, LED lamp, Type-C power input, RS-485, and Micro SD card slot
- Portable & Durable: Compact and lightweight, with 4000mAh Li-ion battery for 5+ hours of field use
Ideal For:
- Fiber link deployment & certification
- FTTH/FTTX installation and troubleshooting
- Data center and telecom maintenance
- CCTV and CATV infrastructure validation
