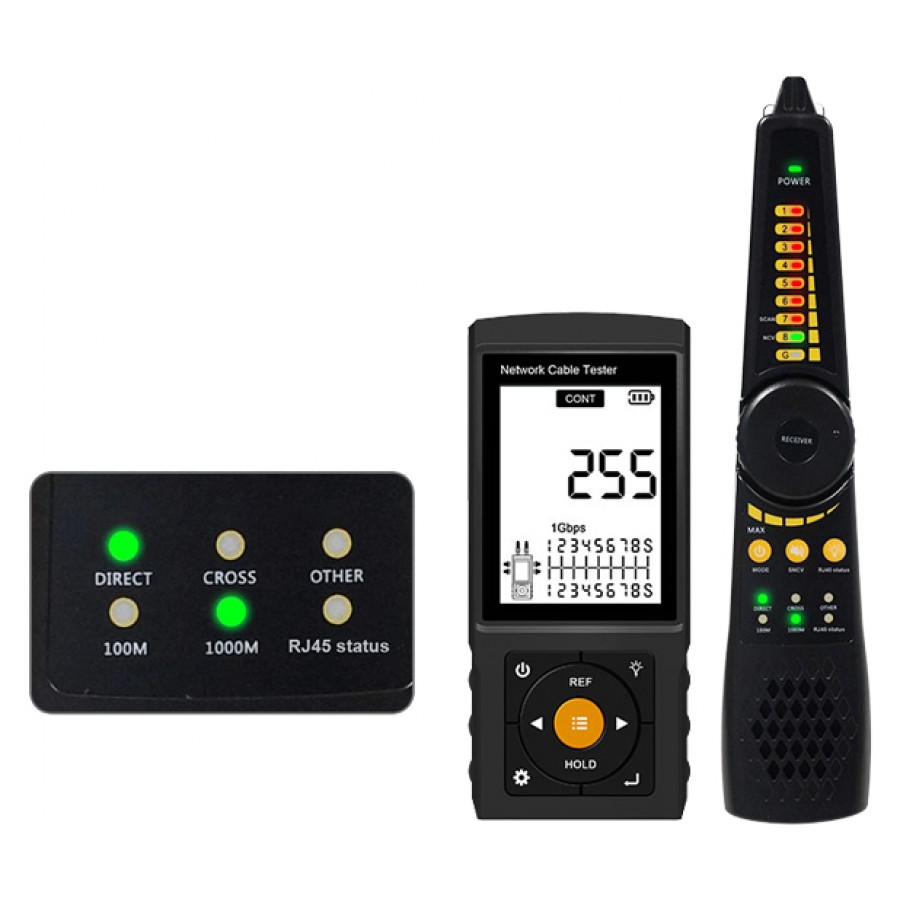

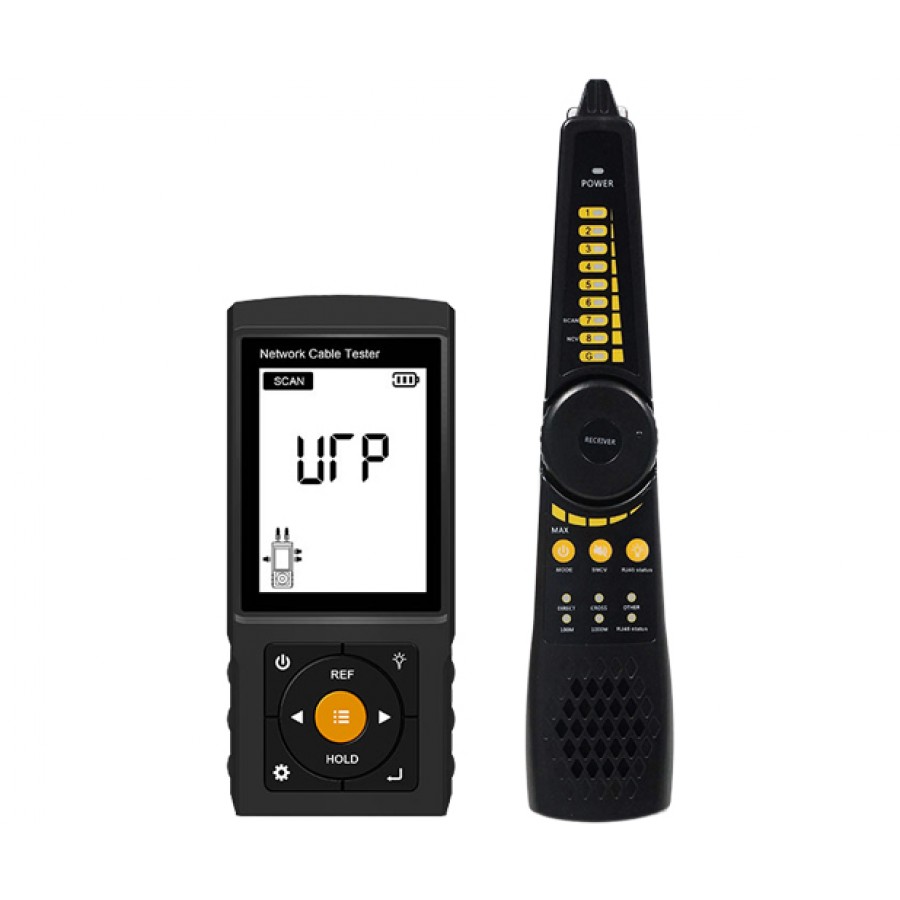

UltraLAN Multi-Function Fiber & Network Cable Tester

The UltraLAN FIB-T-MPCT-OPM-VFL is a powerful hybrid tester combining RJ45 cable diagnostics with fiber optic testing — making it the ultimate tool for both copper and fiber environments. In addition to standard network functions like cable tracing, pin sequence checks, length measurement (up to 600m), and PoE diagnostics, this unit also features an integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL). These built-in fiber tools enable quick and accurate identification of optical signal strength, fiber continuity, and break detection — all from one compact device. Ideal for technicians working across both wired and fiber infrastructure.

Support for PoE testing up to 90W (IEEE 802.3bt/at/af and non-standard) makes it perfect for CCTV, VoIP, and access control setups. Additional features include switch port flashing, cable tracing with adjustable sensitivity, NCV detection for live wires, and optional built-in modules for optical power measurement and visual fault location.

Key Features:

• Tests RJ45 cable sequence, continuity, crimping quality, and pin faults
• Cable length test up to 600m with ±3% accuracy

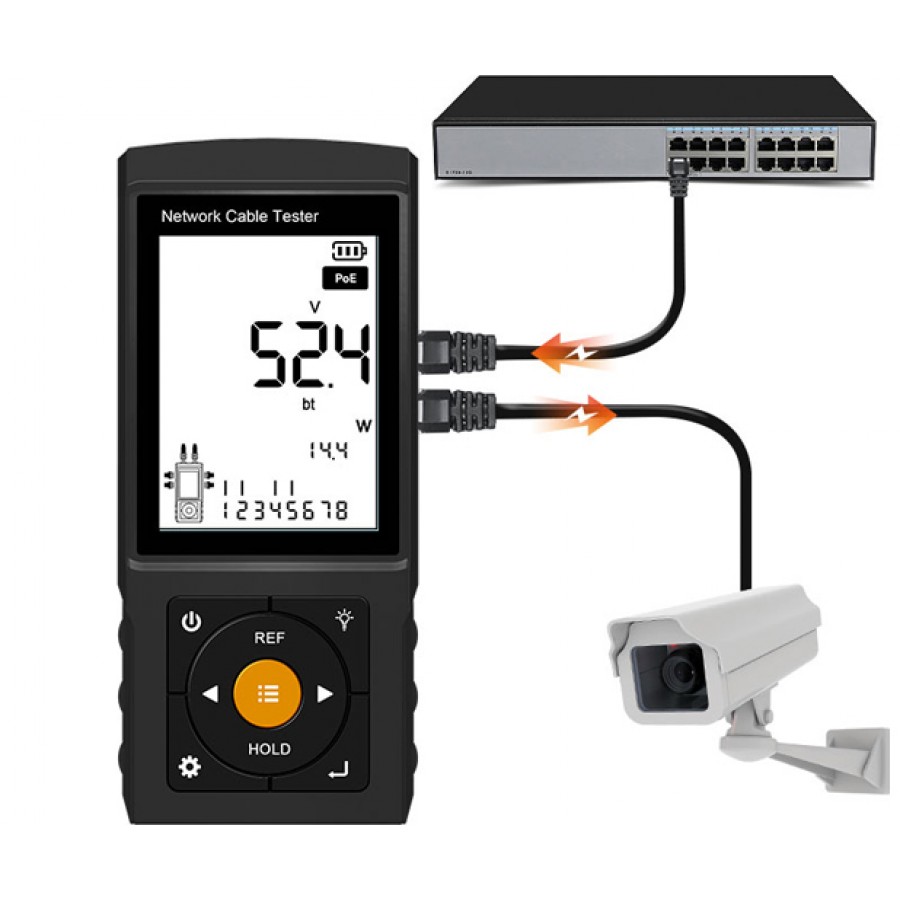

• Real-time PoE testing (IEEE 802.3af/at/bt) up to 90W: Voltage, power, polarity
• Switch/router port identification using port flash mode
• Digital cable tracer with adjustable sensitivity and anti-interference design
• NCV detection with live/neutral wire identification and audible alerts
• Optical Power Meter (optional): -70 to +6 dBm, 850–1650nm wavelengths
• Visual Fault Locator (optional): 10mW red laser, 650nm, range up to 10km
• LED light and auto power-off features

Specifications:

General:

• Display: 3" high-contrast LCD
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 30%–90%
• Power: 3x AA batteries (emitter), 2x AA batteries (receiver)

Network Cable Testing

• Supported Cable Types: RJ45 (UTP/STP), RJ11, low-voltage metal cables
• Cable Length Measurement: 1–600m (±3% ±1m accuracy)
• Wiremap Test: Detects open, short, miswire, cross, and split pairs

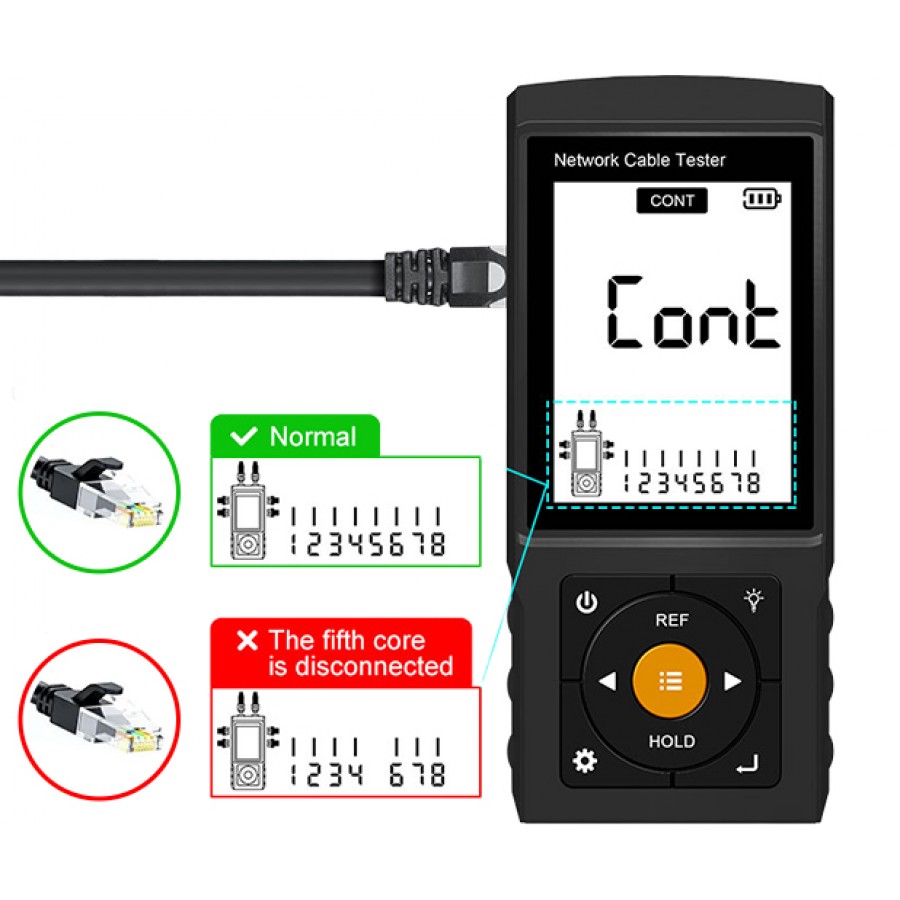

• Continuity Test: Pin-level fault detection and crimp verification
• Port Flashing: Locates switch/router ports and identifies 100M/1000M link speed
• PoE Testing: Supports IEEE802.3af/at/bt and non-standard PoE detection
• Power supply pinout, polarity, real-time voltage & wattage (0–90W load)
• Cable Tracer: Anti-interference digital signal tracing with adjustable sensitivity
• NCV Function: Detects AC voltage in cables and power outlets

Fiber Testing:

• Optical Power Meter (OPM):
  Supported Wavelengths: 980, 1270, 1300, 1577, 1650nm
  Measurement Range: -70 to +6 dBm
  Features: Real-time optical power display, wavelength selection, REF mode for fiber loss comparison, and user calibration support
• Visual Fault Locator (VFL):
  Output Power: 10mW
  Wavelength: 650nm red laser
  Modes: Continuous and pulse (1Hz, 2Hz)
  Detection Range: Up to 10km — ideal for locating fiber breaks, cracks, and bends
