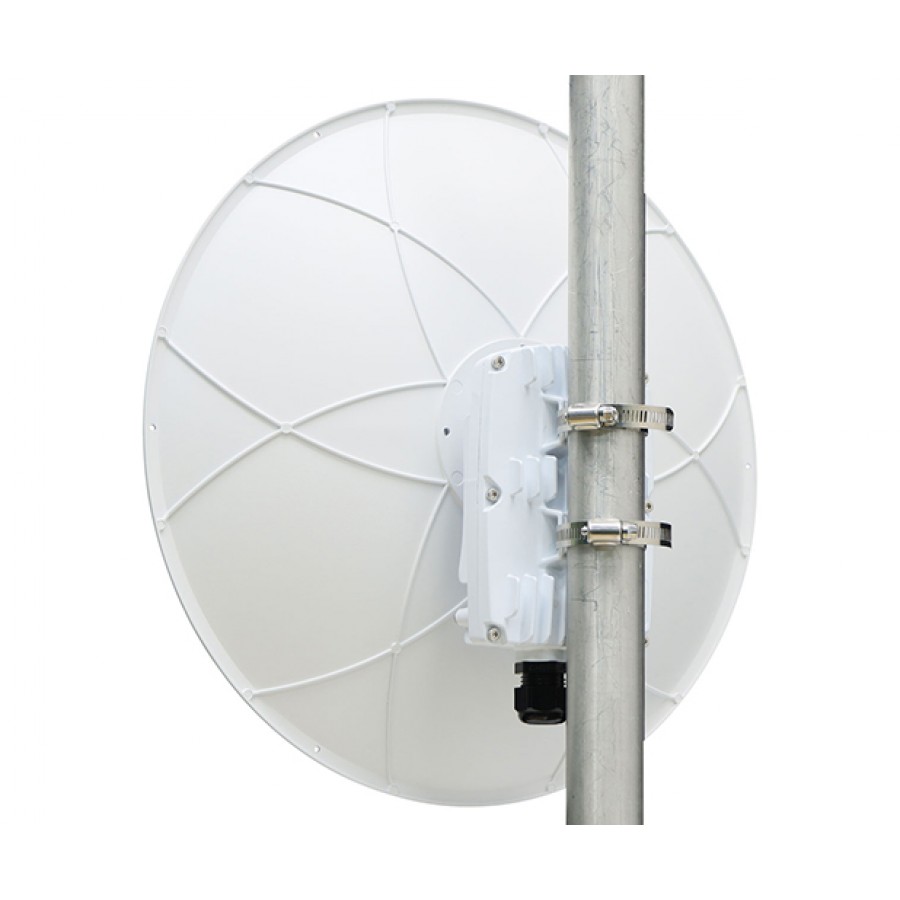

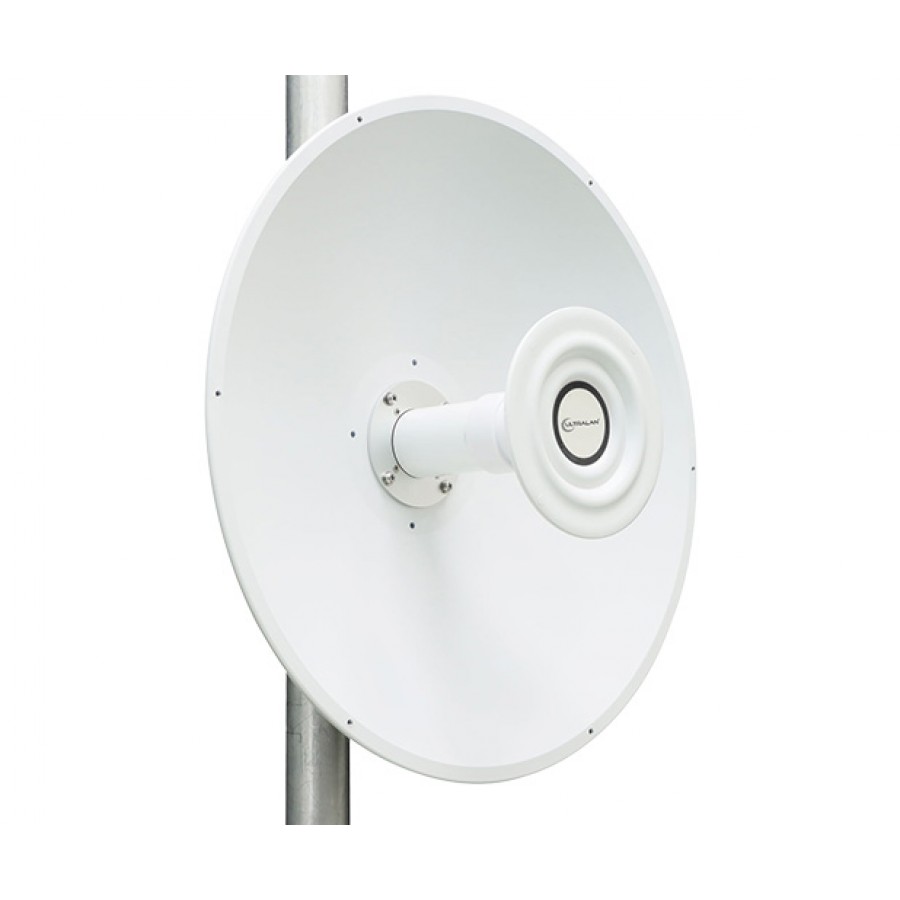

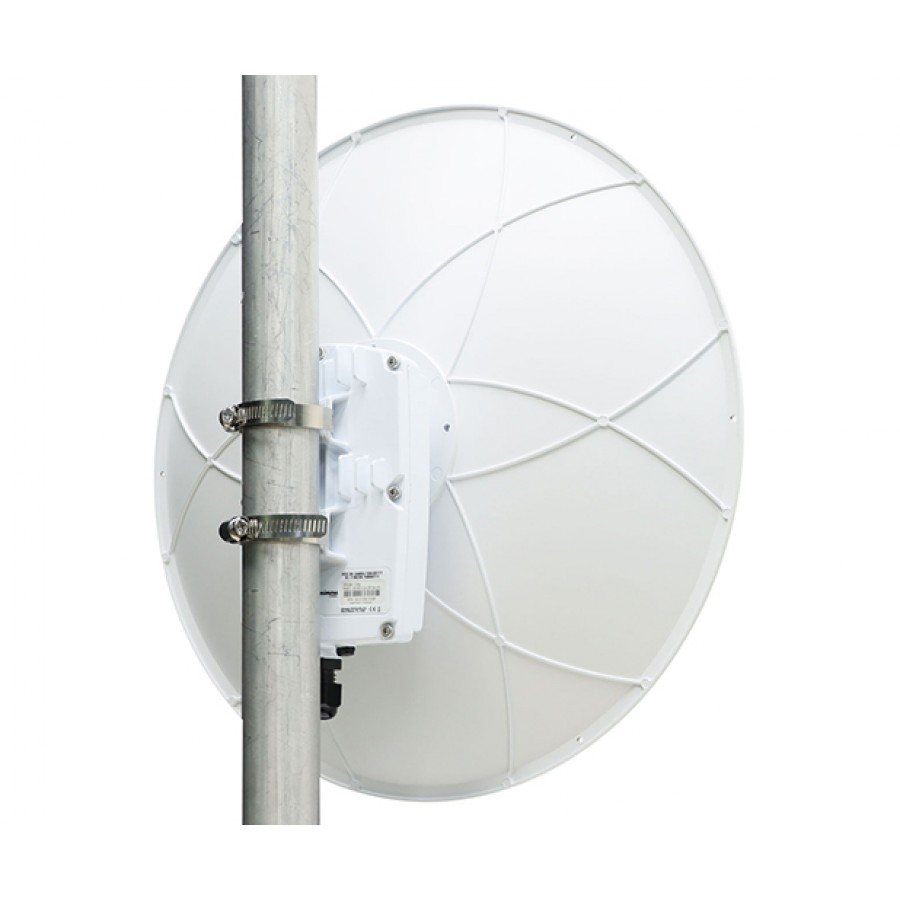

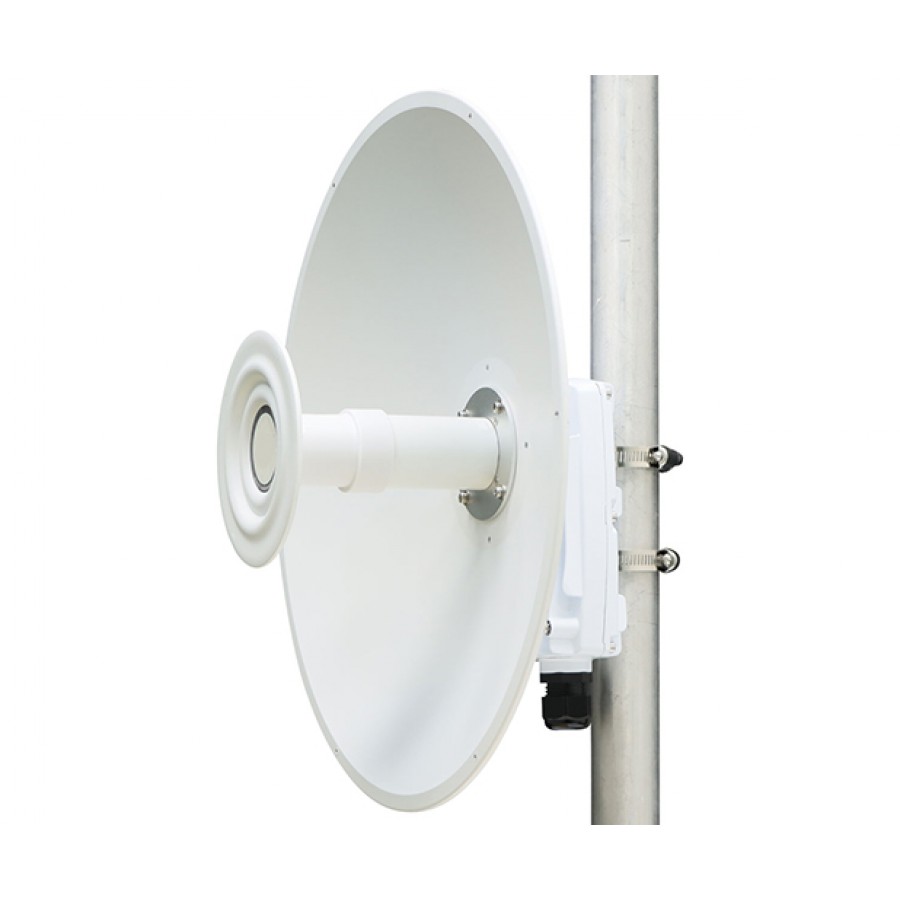

UltraLAN ANT4965-25DP-MIM 25dBi Antenna

High-Performance Twist-On Dish Antenna for Mimosa Radios

The UltraLAN ANT4965-25DP-MIM is a rugged, high-gain dish antenna specifically designed for seamless integration with Mimosa B5X, C5X, and C6X radios. With its twist-on mounting system, installation is fast, secure, and requires no additional adapters—making it a hassle-free upgrade for your wireless deployments.

Covering a broad frequency range of 4.9GHz to 6.5GHz, this 25dBi dual-slant polarized antenna offers excellent performance across licensed and unlicensed bands, making it suitable for a wide range of point-to-point applications. Its tight 8° beamwidth delivers focused, interference-resistant signal transmission ideal for high-density environments.

Key Features:

• Optimized for Mimosa: Native twist-on mount supports Mimosa B5X, C5X, and C6X radios (radios not included).
• High Gain: Up to 25dBi across the upper 5GHz band for long-range and high-throughput links.
• Dual-Slant Polarization: ±45° or H/V polarization improves signal reliability in noisy RF environments.
• Built to Last: Die-cast aluminum dish with a white powder-coated finish resists corrosion and weather damage.
• Reliable in Harsh Conditions: Withstands winds up to 200 km/h and operates in temperatures from -40°C to +70°C.

Specifications:

• Frequency Range: 4.9 – 6.5GHz
• Gain: 23 to 25dBi depending on band segment
• VSWR: <2.0 (typical)
• Beamwidth: 8° (H and V)
• Front-to-Back Ratio: >30dB
• Dimensions: 440mm diameter × 65mm depth
• Weight: 1.5kg
• Connector Type: Twist-on (for Mimosa radios)
