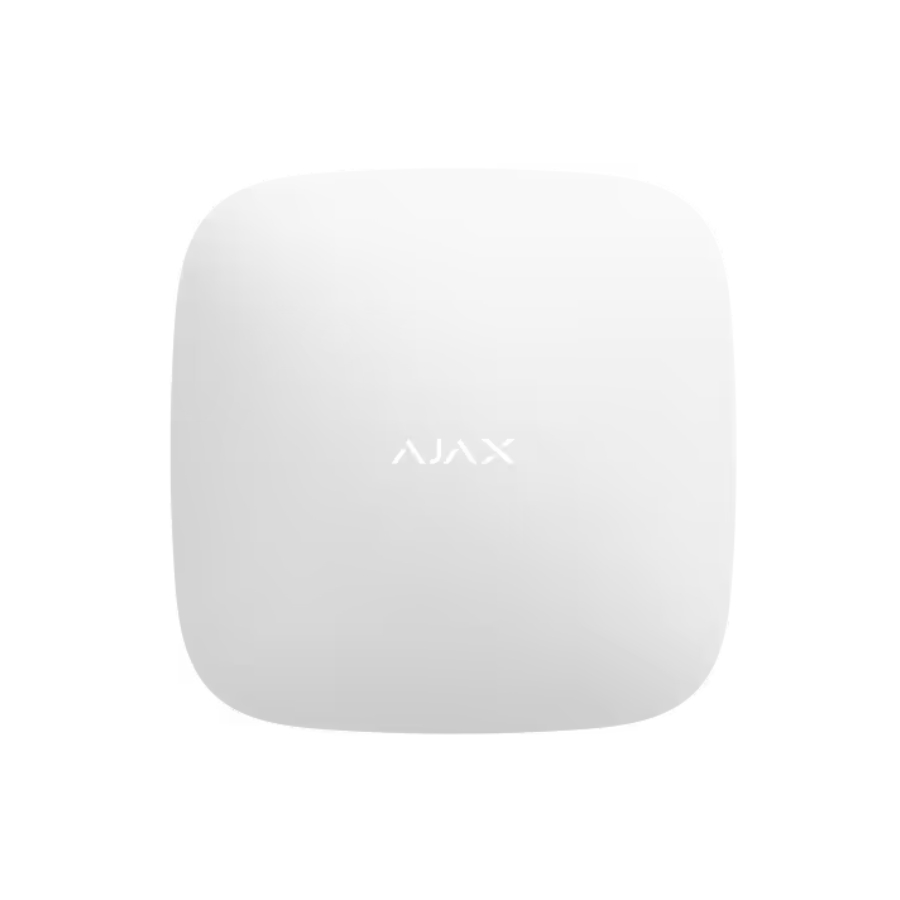

ReX 2 Jeweller

Wireless radio signal range extender with support for photo verification and Ethernet connection.

More applications of a security system

Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices1 to ReX 2 Jeweller, you will ensure the security and automation of a business center, big estate, warehouse complex, or a large production facility.

5 range extenders can operate within the Ajax system to expand the radio network coverage up to 35 km2. Events and alarms are transmitted instantly, and the first photo verification snapshot is delivered to a monitoring station and users in just 10 seconds.

Extended radio communication range

Photo verification of alarms

ReX 2 Jeweller works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of animated pictures, helping to assess the situation at the facility. This reduces unnecessary patrol dispatches and saves the clients' nerves.

1. Motion detected

2. Alarm triggered

3. Evidence captured

Privacy first

The detector activates its camera when the security system is armed and the motion is detected. Shots are encrypted at every stage of transmission. While stored on the Ajax Cloud server, no pictures are processed or analysed. Visual alarm verifications can only be viewed by users with access rights to the events feed with push notifications enabled and by security company employees if the security system is connected to a monitoring station.

Jeweller | Wings

Unique wireless technologies

The Ajax system uses two-way secure radio communication based on Jeweller and Wings proprietary protocols. Radio protocols work in parallel and focus on their own function, guaranteeing instant data and delivery even with communication interruptions and a weak signal.

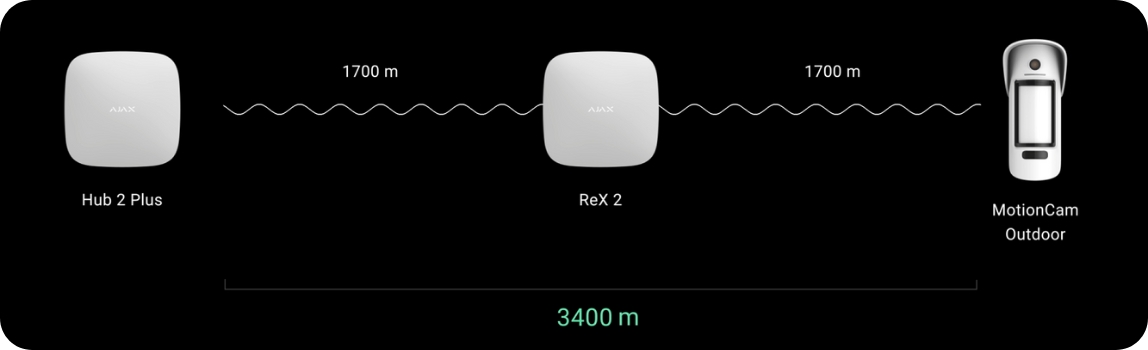

Up to 1700 m of radio communication with a hub

Encrypted two-way radio communication

Notifications about jamming and connection loss

9 seconds to deliver the first photo

Radio communication through steel and concrete

With the OS Malevich 2.13 operating system update, the ReX 2 Jeweller range extender will connect to the hub not only via radio but also via Ethernet using the wire as the only or prioritized communication channel. A single Ajax system can cover the facility like an office centre with underground parking, or a sectional metal hangar, or a warehouse complex of several large buildings.

• Transmission of alarms, events and photos via cable
• Automatic switching the communication channels in case of connection loss
• Encryption of transmitted data
• Connecting via router

Enhanced security system

ReX 2 Jeweller works as an extra intelligent control panel: it connects devices into an autonomous group and takes over control at the right time. Thanks to automatic adjustment of signal power and frame synchronization, any number of system devices can be connected to ReX 2 Jeweller — the reliability of communication will not be affected by this. If, for some reason, radio communication with the hub is interrupted, ReX 2 Jeweller will continue to operate via Ethernet. If a connection via Ethernet is lost, ReX 2 Jeweller receives an alarm from a detector and activate a siren to draw attention to the incident and deter the burglar.

Ready to resist intruder attacks

ReX 2 Jeweller is protected from attacks at the software and hardware levels. It runs on the OS Malevich operating system, which is immune to viruses. All data transmitted by the range extender is encrypted. Thanks to the built-in backup battery, a sudden blackout at a facility will not be a problem.

• Up to 38 hours of backup battery life
• Informing about interferences and jamming
• Detecting attempts to dismantle and open the enclosure
• Immunity against viruses

OS Malevich

Evolving, not outdated

ReX 2 Jeweller runs on OS Malevich, a real-time operating system developed by Ajax Systems. The OS Malevich modular architecture allows its regular updates. The operating system updates over the air. The process does not need the installer or user involvement and takes minutes when the security system is disarmed.

Hassle-free installation

ReX 2 Jeweller connection and configuration process greatly saves the installer time. To add a range extender to a system, simply scan a QR-code with the Ajax app and assign it a name and a room. The device is also configured in real time in the app. If necessary, ReX 2 Jeweller can be disabled or reconfigured without site visits.
