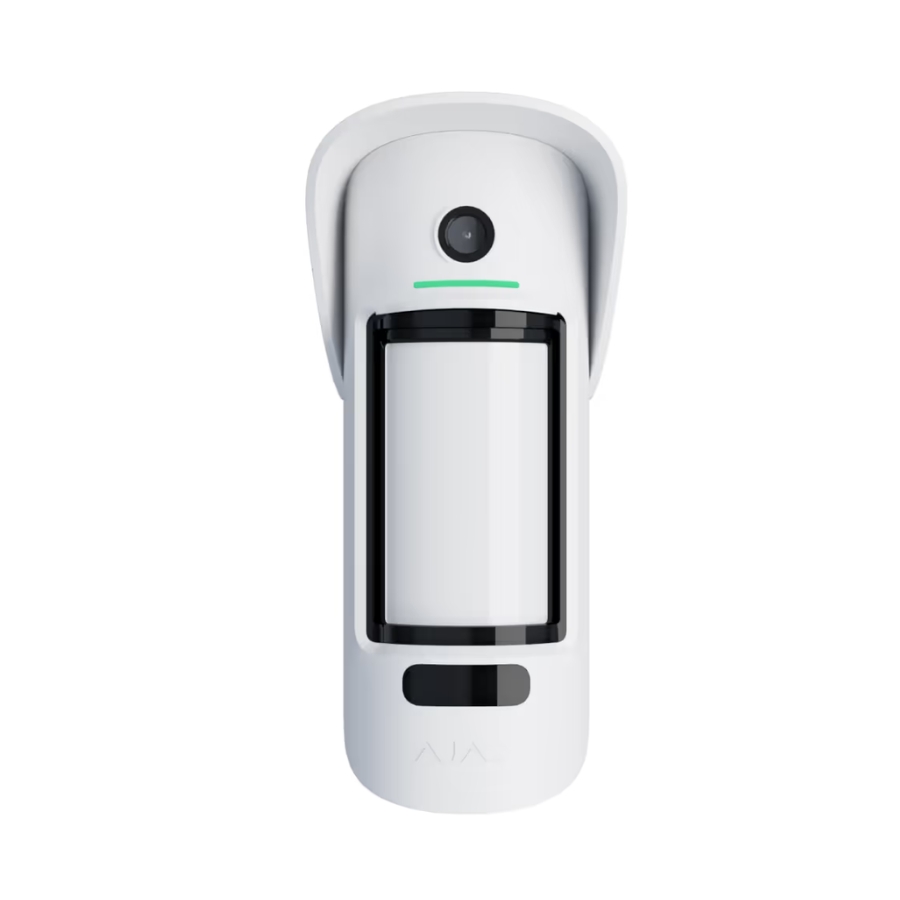

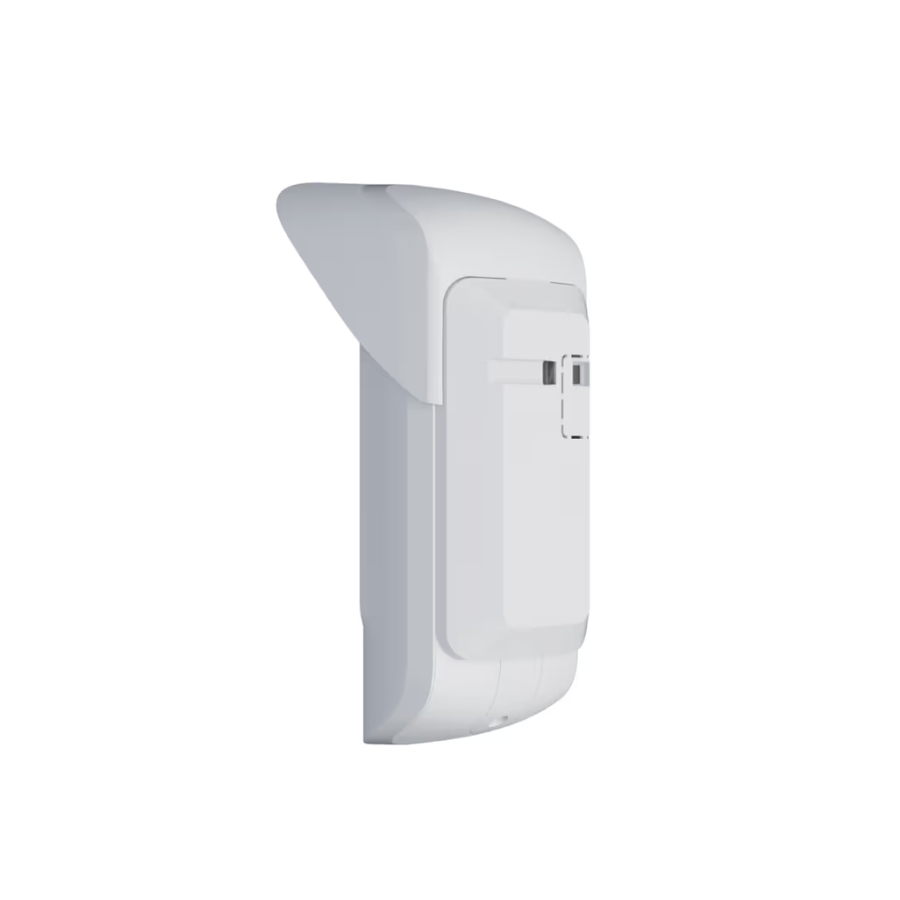

Ajax MotionCam Outdoor Jeweller

0 reviews

In Stock
  • Product Code: AJX-M-MCO
  • Brand: Ajax
Retail incl VAT : R4,299.00
-
+

Please log in for dealer pricing

Description

Lightning-fast alarms. Verified.

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.

1. Motion detected
2. Alarm raised
3. Evidence captured

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

HDR camera
IR backlight
Series of 2–5 photos

CMS software supporting visual alarms verification


Horus
Manitou
SBN
Sentinel
WBB

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Correlation analysis

Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.

Spectral analysis

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.

Multilevel anti-sabotage protection

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors that react to hindering, covering and painting the lens.

It will take the hub less than a minute1 to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.

  • Anti-masking system
  • Notifications about detachment
  • Configurable detector ping interval

Effective security in any weather

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.

  • Efficiency in heat and cold
  • IP56 enclosure protection
  • Bundled hood to protect from rain and snow

Jeweller | Wings

Unique wireless technologies

The Ajax system uses two-way secure radio communication based on Jeweller and Wings proprietary protocols. Radio protocols work in parallel and focus on their own function, guaranteeing instant data and delivery even with communication interruptions and a weak signal.

  • Up to 1700 m of radio communication with a hub or range extender
  • Encrypted two-way radio communication
  • Notifications about jamming and connection loss
  • 9 seconds to deliver the first photo

Less manual labor. More settings in the app.

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.
