Ubiquiti Pro Max 16 Port PoE (UB-USW-PRO-MAX16P)
- Product Code: UB-USW-PRO-MAX16P
- Brand: Ubiquiti
Description
Ubiquiti UniFi Pro Max 16 Port PoE Switch (UB-USW-PRO-MAX16P)
Delivering next-generation performance and flexibility for modern networks.

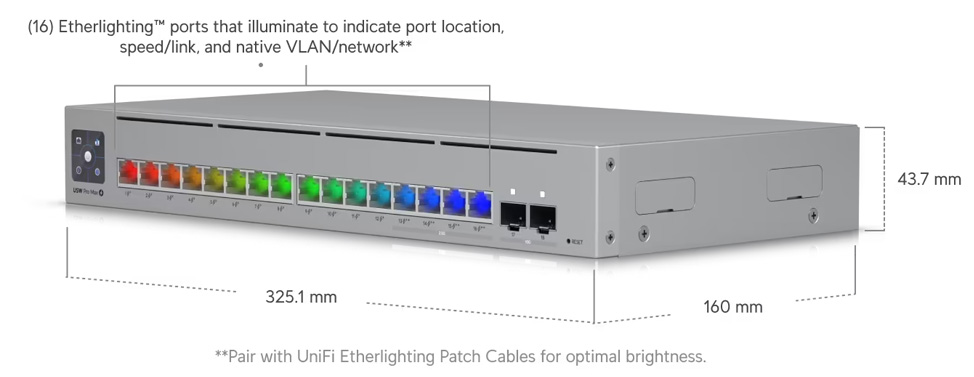

- The USW-Pro-Max-16P is a powerful Layer 3 Etherlighting™ switch with 16 RJ45 ports, supporting 2.5GbE and high-power PoE++ output.

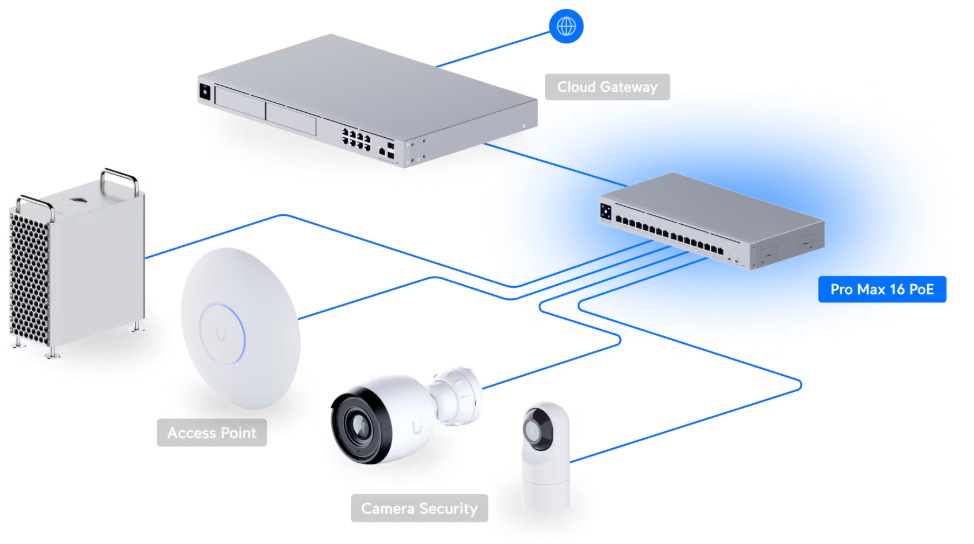

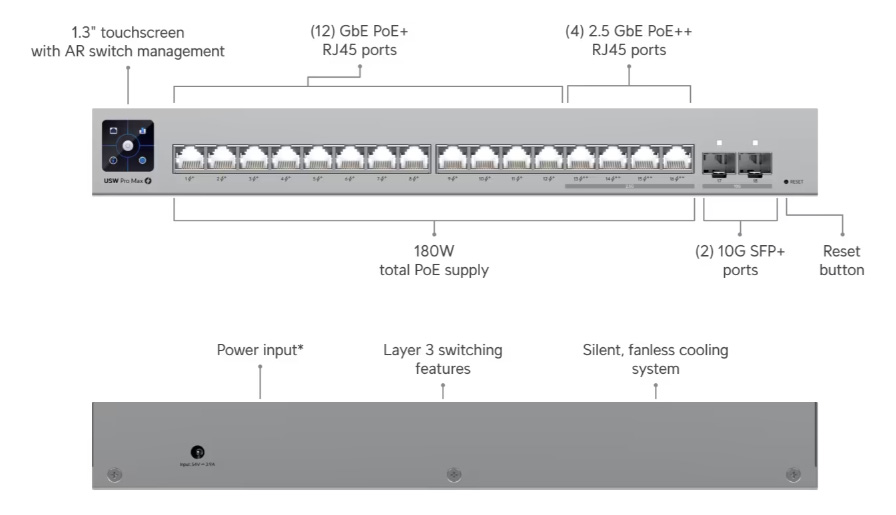

- Equipped with 12× Gigabit PoE+ (802.3af/at) ports and 4× 2.5Gbps PoE++ (802.3af/at/bt) ports, the switch offers a total 180W PoE budget, making it ideal for powering access points, cameras, and other high-demand devices.
- Includes 2× 10G SFP+ uplink ports for high-speed fiber backbone connectivity.
- Flexible installation with included rack-mount kit for 10" racks.
- Seamlessly integrated and centrally managed via the UniFi Network Application, offering intuitive configuration, real-time monitoring, and remote firmware updates.
- Ideal for advanced UniFi deployments requiring high throughput, intelligent PoE delivery, and compact design.
Specification
| HDMI Specifications | |
| Power consumption (Max) | 25W (Excluding PoE Output) 210W (Including PoE Output) |
|---|---|
| Load Balancer Specs | |
| Power Supply | AC/DC, external, 210W |
| PoE Injector Specs | |
| Power Input | AC input |
| PoE Switch Specs | |
| Total PoE power supply | 180W |
| Reyee CAP | |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Specs | |
| Ethernet Ports | 12 x GbE RJ45 ports (All PoE+) (1G/100M/10M) 4 x 2.5 GbE RJ45 ports ((All PoE++) (2.5G/1G/100M/10M) 2 x 10G SFP+ ports (10G/1G) |
| AirFiber | |
| Enclosure materials | SGCC steel |
| Mounting | Rackmount(1U) or Wall Mounting |
| Power method | AC Adapter |
| Reyee switches | |
| PoE ports | 12 x POE+ 4 X POE++ |
| Switching capacity | 84 Gbps |
| Forwarding rate | 62 Mbps |
| MAC address table | Size of 16 000 |
