Ubiquiti U7-IW
- Product Code: UB-U7-IW
- Brand: Ubiquiti
Description

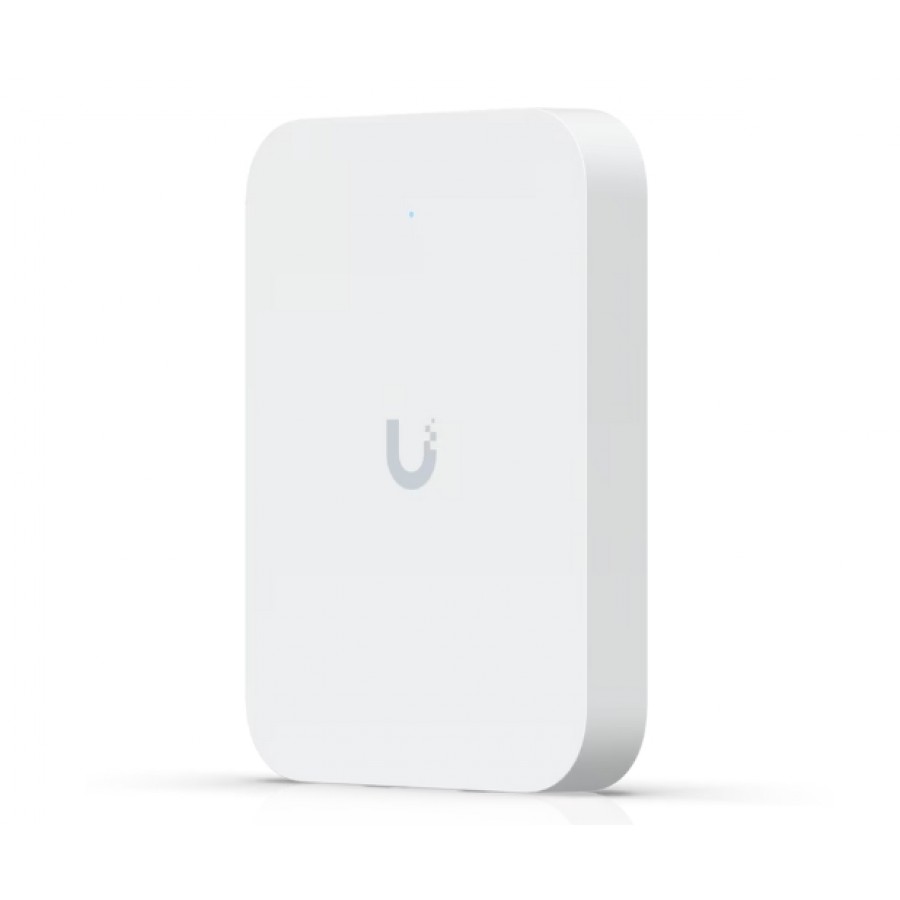

Ubiquiti U7-IW
Wall-mounted WiFi 7 access point tailored for hospitality and business-grade wireless networks. It delivers ultra-fast data transfer, broad coverage, and seamless device scalability — all in a compact, in-wall form factor.
Key Features & Benefits

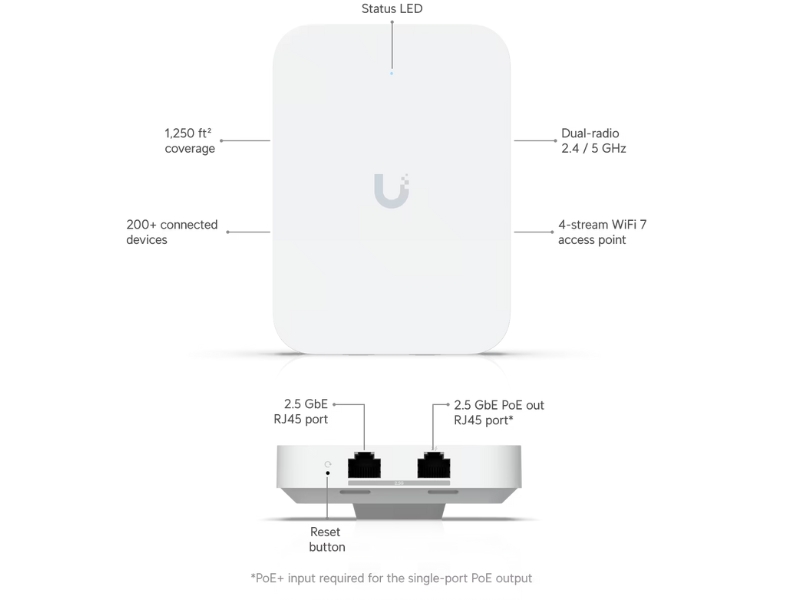

- WiFi 7 (802.11be) dual-band support: operates on 2.4 GHz and 5 GHz frequencies with up to 4 spatial streams, enabling blazing-fast throughput and low latency for modern applications.
- Peak theoretical data rates of ~4.3 Gbps on 5 GHz (BW240) and ~688 Mbps on 2.4 GHz (BW40).
- Covers approximately 115 m² (1,250 ft²) and supports 200+ concurrent clients — ideal for dense deployments like hotels or student accommodation
Networking & PoE Capabilities

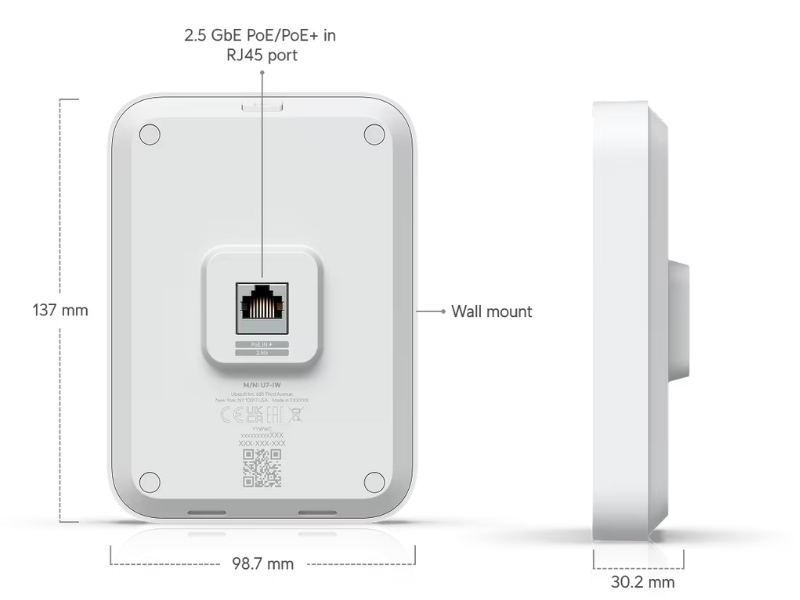

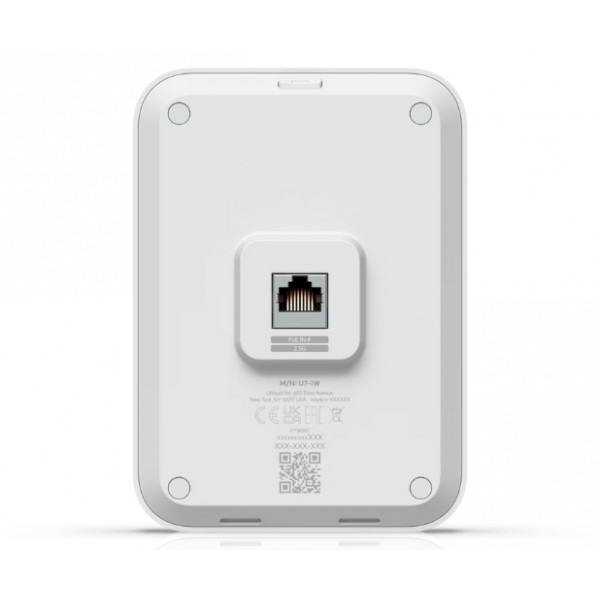

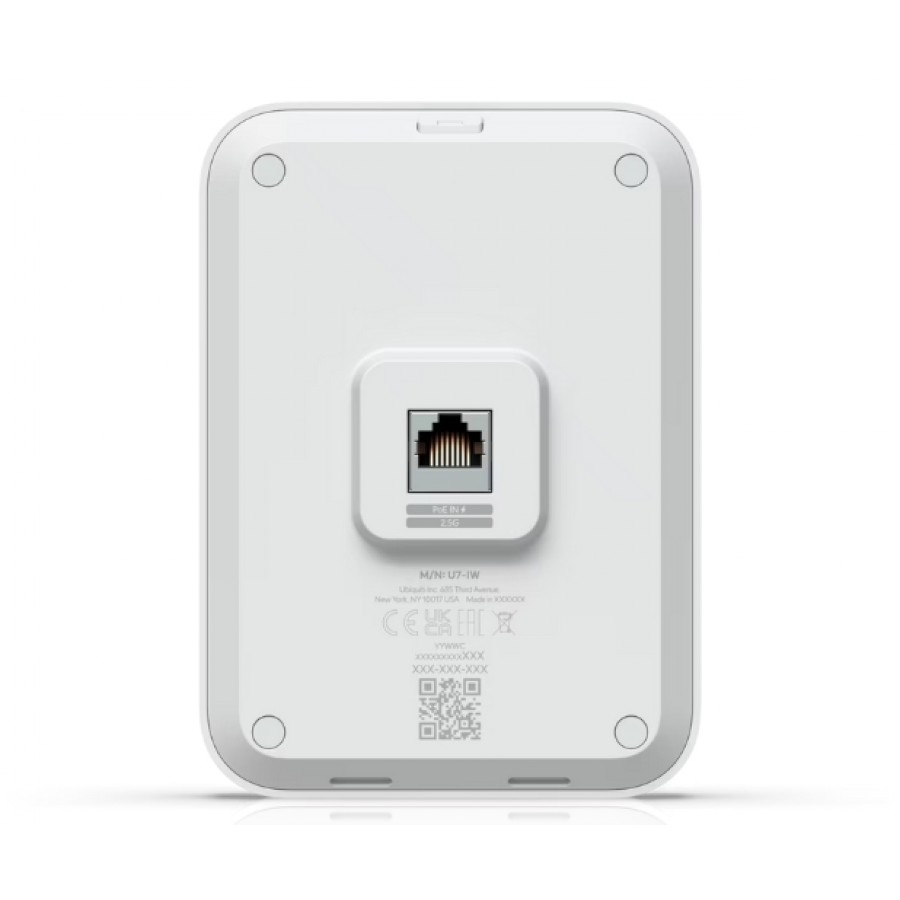

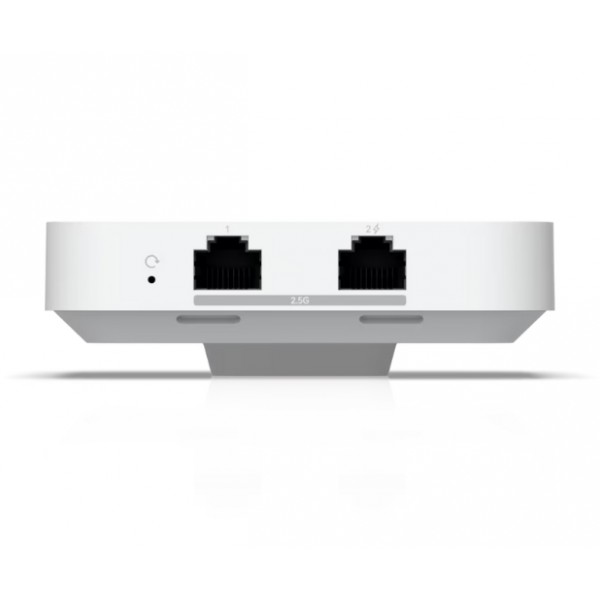

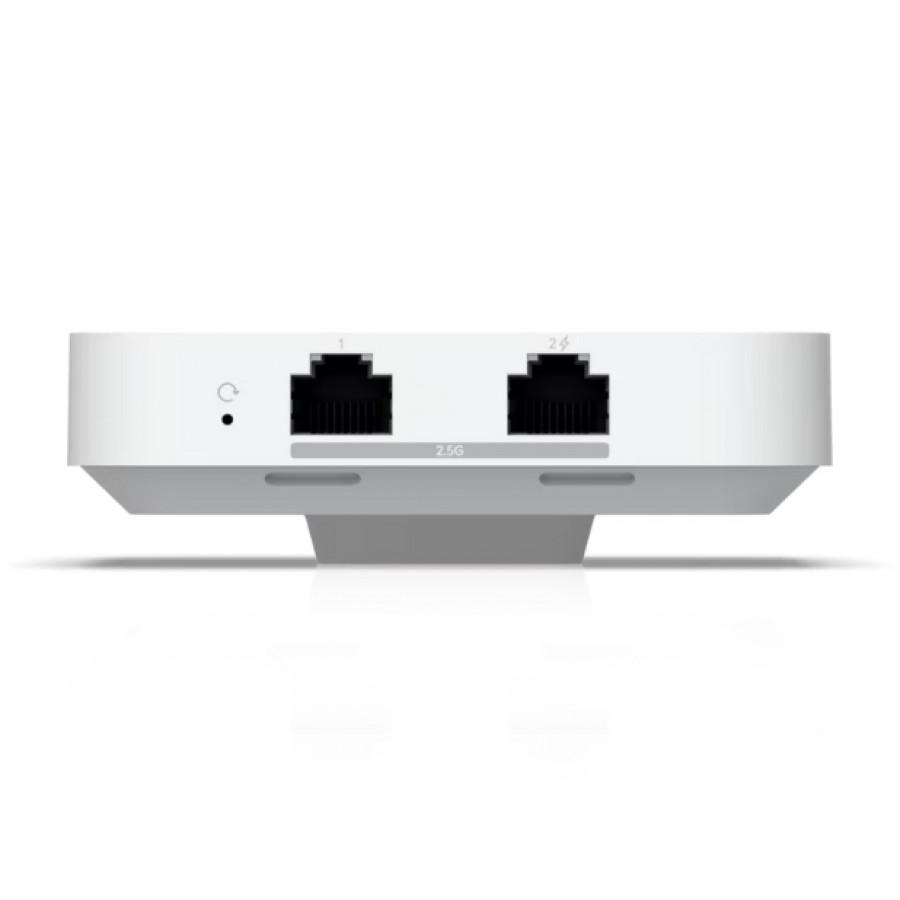

Equipped with three 2.5 GbE RJ45 ports: one uplink and one built-in PoE passthrough for powering downstream devices.
Requires PoE+ (42.5–57 V DC) for PoE passthrough; max power draw is 13 W (excluding PoE output).
Specification
| HDMI Specifications | |
| Power consumption (Max) | 13W (Excluding PoE output) |
|---|---|
| NVR Specs | |
| Network Interfaces | 3 x 2.5 GbE RJ45 ports |
| Reyee CAP | |
| Certifications | CE, FCC, IC, SRRC |
| MIMO | 5GHz - 2 x 2 (DL/UL MU-MIMO) 2GHz - 2 x 2 (DL/UL MU-MIMO) |
| RouterBoard Specs | |
| Antenna Gain | 5 GHz - 8 dBi 2.4 GHz - 4 dBi |
| SFP Module Specs | |
| Data Rate | 5 GHz - 4.3 Gbps (BW240) 2 GHz - 688 Mbps (BW40) |
| AirFiber | |
| Enclosure materials | Polycarbonate, aluminum alloy |

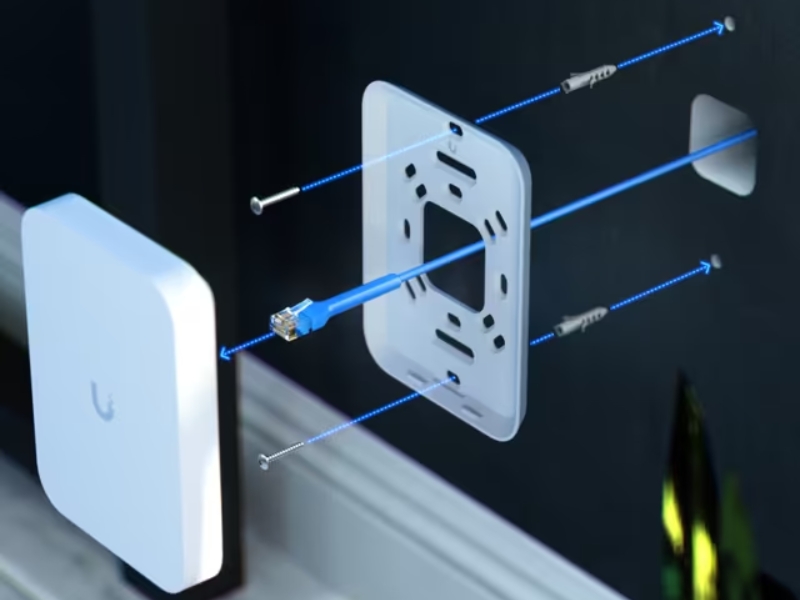

| Mounting | Wall (Metal Wall Mount Included) |
| Power method | PoE PoE+ (Required for PoE output) |
