UltraLAN Fiber Drop Cable (Round, Gel Filled) - 2 Core

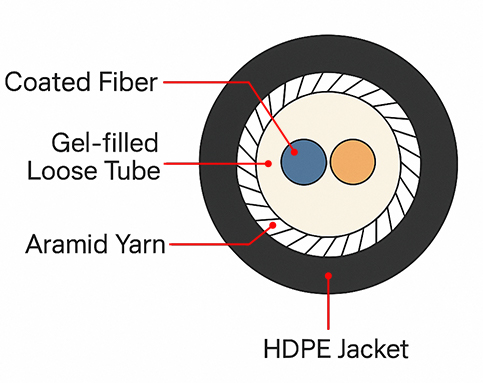

This UltraLAN fiber cable is a gel filled, Single Mode, G657A1, 2 core fiber cable for FTTX applications. The outer jacket is 3.8mm and made from UV resistant HDPE material suitable for both indoor and outdoor installations.
Supplied on a wooden drum in 2000m length.

Key Features:

• Fiber Count: 2 core (G.657A2 single-mode)

• Jacket Material: UV-resistant black HDPE

• Strength Member: High-tensile aramid yarn

• Loose Tube: Gel-filled for moisture protection

• Cable Diameter: Approx. 3.8 ± 0.2mm

• Weight: 12kg/km

Optical Performance:

• Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm

• Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm

Mechanical Ratings:

• Tensile Strength: 150N (long-term), 300N (short-term)

• Crush Resistance: 300N/10cm (long-term), 650N/10cm (short-term)

• Bend Radius: 10D static / 20D dynamic

• Operating Temperature: -40°C to +70°C

Ideal for outdoor drop connections, this cable delivers excellent protection, flexibility, and reliability in all climates.
