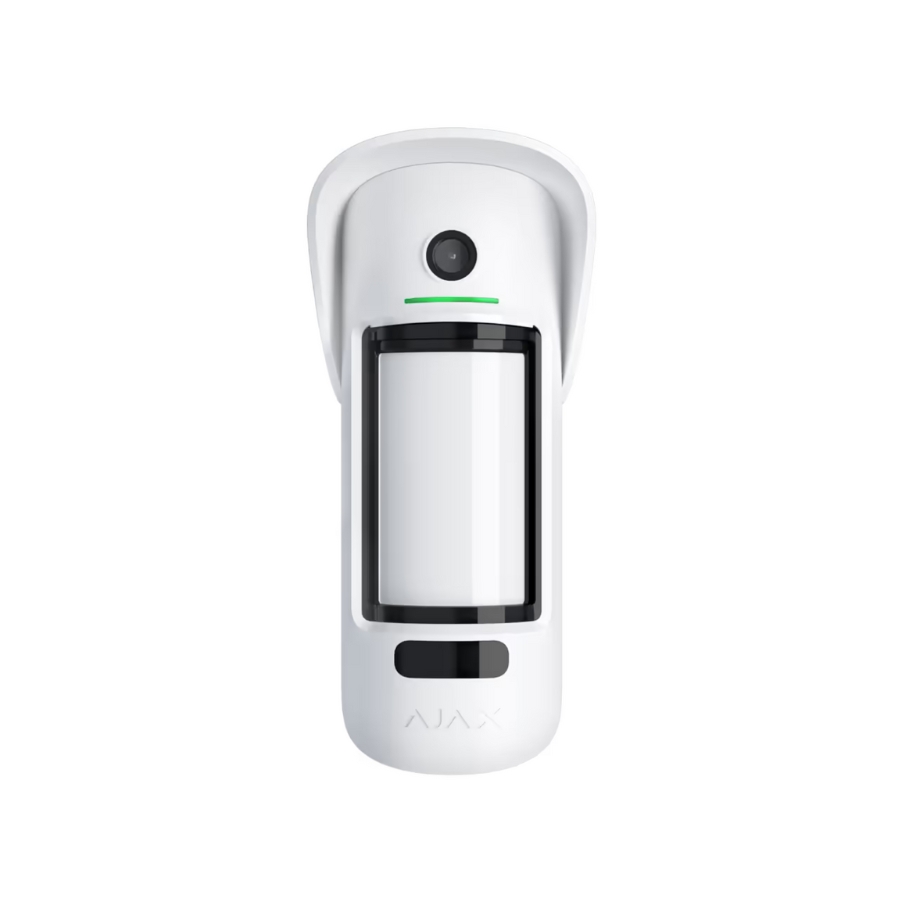

MotionCam Outdoor (PhOD) Jeweller

Wireless PIR motion detector with extended photo verification possibilities. For outdoor and indoor use.

Detection

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which help to instantly distinguish real threats from interferences.

Photo verification

Outdoor surveillance and alarm confirmation

MotionCam Outdoor is equipped with a camera to quickly assess the situation at the protected facility. The detector takes an automatic series of photos as soon as it detects an intrusion into the territory. A series of photos combines into an animation showing the situation development in the dynamics. MotionCam Outdoor PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule, when selected devices in the system trigger an alarm, and when someone arms or disarms the system.

• Photo by alarm
• Photo on demand
• Photo by schedule
• Photo by scenario
• Photo by arming/disarming

Camera

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

• HDR camera
• IR backlight
• Series of 2-5 photos

CMS software supporting Ajax visual alarms verification

• Horus
• Manitou
• SBN
• Sentinel
• WBB

Advantages of photo verification

Territory under surveillance

In case of any doubts, system users can check what is happening at the facility. No need to wait for an alarm. Just open the app, select the detector, and you'll see the situation in the yard in a few seconds.

Less reasons to worry

Outdoor motion detectors operate in a complex environment full of natural sources of false alarms. MotionCam Outdoor allows system users and monitoring station operators to see in seconds whether the alarm is real, so they can respond accordingly.

More security

Both system users and the rapid response unit must have a clear understanding of what is happening at the facility where the security alarm was triggered. The detector will show how many criminals are still on the approaches to the premises and whether they are armed. This will help a security patrol to prepare and users can avoid danger.

Evidence in a smartphone

A series of animated photos in the app allows conveying the peculiar features of burglars to law enforcement without wasting time. Thanks to the infrared backlight, the detector spots them even in complete darkness. The chances of catching criminals on the spot increase.

Lightning-fast alarms. Verified.

MotionCam Outdoor Jeweller

MotionCam Outdoor Jeweller is an outdoor motion detector with basic photo verification capabilities. The device can capture photos only when an alarm is raised.

Data protection

Privacy first

MotionCam Outdoor (PhOD) Jeweller is designed to control security without compromising privacy. Photos are protected from prying eyes at the detector, system, and app level.

Clear division of rights

A separate Ajax menu allows precise configuring of the users' access to visual data: who and when can send a request for a photo, as well as view the received photos and streams from integrated surveillance cameras.

Encryption and GDPR

Graphic data is securely protected by encryption at each stage of transmission and subsequent storage. Only hub users can access its virtual storage on Ajax Cloud and view photos taken by detectors. Ajax Cloud is located on geographically dispersed servers that meet the requirements of the General Data Protection Regulation (GDPR).

Detailed event log

The event log records all actions within the system. Users are notified that the photo was taken and who made the request. The photos themselves are visible only to those who have access to the system's visual data.

Only with Ajax

Unique wireless technologies

Detector uses two radio protocols at a time: Jeweller for alarm notification and Wings for photo transmission. Jeweller provides instant alarm delivery, and Wings will deliver the first photo from the scene in 9 seconds. Even with communication interruptions and a weak signal. Thanks to the range of communication with an Ajax hub of up to 1,700 meters, the detector is easy to install where it will be most effective.

• Installation range up to 1,700 m
• Photo delivery in less than 9 seconds
• Two-way encrypted communication

Only with Ajax

Effective security in any weather

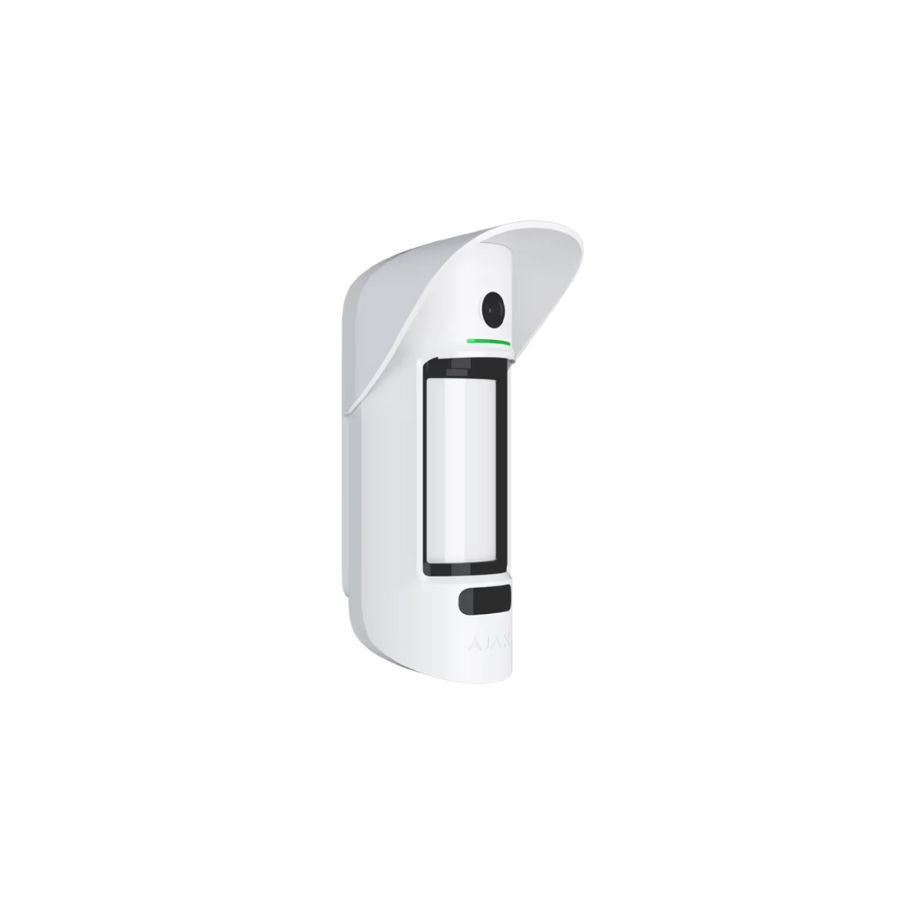

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.

• Efficiency in heat and cold
• IP56 enclosure protection
• Bundled hood to protect from rain and snow

A solution for really big facilities

ReX 2 Jeweller

With the help of the ReX 2 Jeweller range extender, the radio communication range can be doubled up to 3400 meters; or, photo confirmations can be transmitted via Ethernet cable. Due to the automatic adjustment of signal strength and frame synchronization, any number of system devices can be connected to ReX 2 Jeweller – the communication reliability will not be affected.

Up to 5 range extenders with a total coverage of up to 35 km2 can be connected to one Ajax system.

Only with Ajax

Complex anti-sabotage system

Detection of communication loss in 36 seconds

The device polling frequency is set by the installation engineer or user with administrator rights in the hub settings in the Ajax app. With a minimum interval of 12 seconds, the system needs 36 seconds to detect a lost connection and notify a monitoring station and system users.

Notification about dismantling

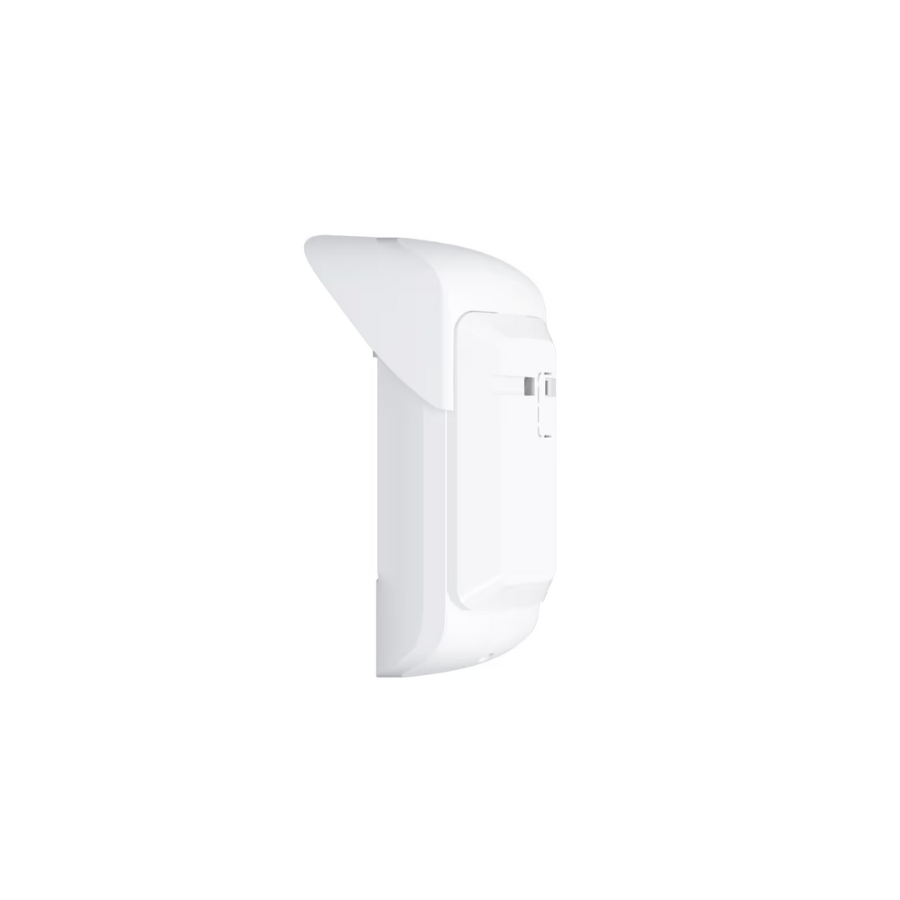

The detector body is equipped with a tamper that detects an attempt to remove the device from the SmartBracket mounting panel or tear it off the surface.

Sensors to detect masking

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.

Data protection with encryption and hopping

All data stored and transmitted by the system is protected by block encryption with a dynamic key. Frequency hopping is used in radio transmission, complicating interception and jamming.

Authentication against device forgery

Unique markers are used to authenticate the device; an Ajax hub verifies them during each communication session. If any parameter is not verified, the hub ignores device commands.

Event notification in 0.15 seconds

A monitoring station receives notifications of detector alarms and events in 0.15 seconds. Due to the addressability, the notification includes time, device model and name, event type, and room.

Jamming detection in 30 seconds

An Ajax hub analyzes the quality of communication with system devices. If part of the data packages is lost, the hub will change the transmission frequencies and notify a monitoring station of interference in the air.

Only with Ajax

Intuitive installation and connection

The detector connects to the Ajax security system in a few clicks. Open the Ajax app, scan the QR code and add the detector to the room. No need to disassemble the detector enclosure. The SmartBracket mounting panel allows you to securely mount the detector both on a flat surface and in a corner.
